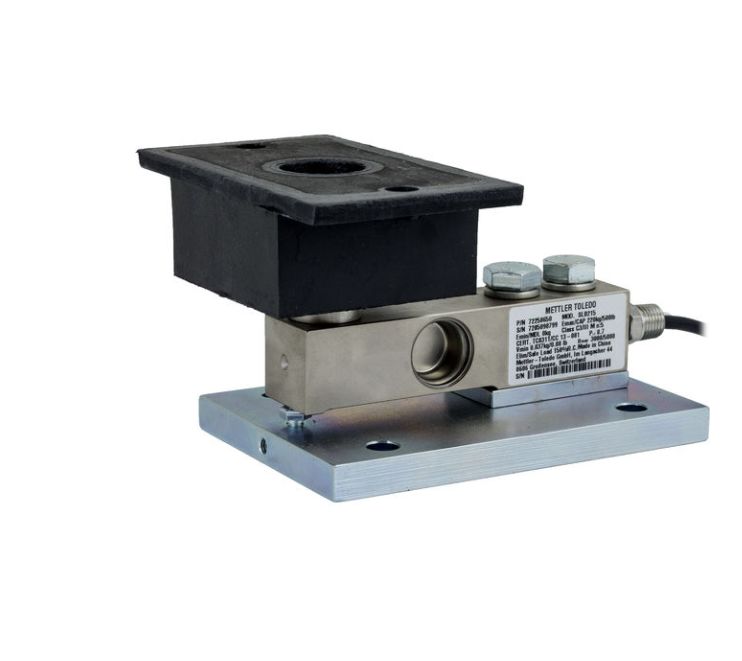

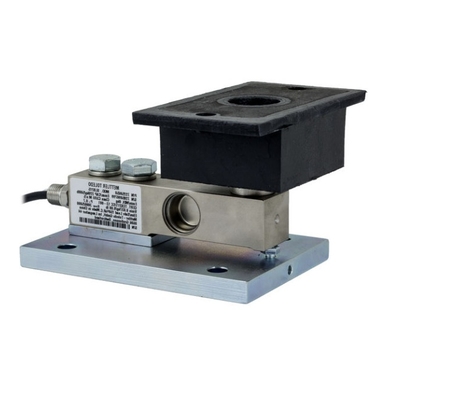

Name: 1250kg Capacity SWB220 Stainless Steel Load Cell with Industrial Weighing Module
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWB220 SS 1.25K
Availability: InStock

Home Products Mettler Toledo Load Cell

1250kg Capacity SWB220 Stainless Steel Load Cell with Industrial Weighing Module

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB220 SS 1.25K

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	550 Kg/1,250 Lb
Material:	304 Stainless Steel	Metrology:	OIML C3, NTEP III 5M
Load Cell:	SLB515	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX, FM, CFM	Criticality:	Standard
Cable:	16.4 Ft (5 M)
Highlight:	1250kg stainless steel load cell , industrial weighing module load cell , Mettler Toledo SWB220 load cell

1250kg Capacity SWB220 Stainless Steel Load Cell with Industrial Weighing Module

Key Features

Compression weigh module designed for industrial applications
Can be directly attached to ground, piers, or structural beams
Ideal for truck scales, railroad track scales, and tank/silo weighing
Capacity ranges from 3 kg to 300 tons
Economical weighing solution for OEM machinery and conveyors
Built-in overload stop protects the load cell sensor
Elastomeric compression mount with vibration isolation

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	550 kg/1,250 lb
Material	304 Stainless steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB515
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	16.4 ft (5 m)

Product Description

The SWB220 Stainless Steel Load Cell with Industrial Weighing Module is a compression weigh module specifically engineered for demanding industrial applications. Its robust design features top and base plates that compress under load, providing reliable weight measurement.

This versatile module can be directly mounted to various surfaces including ground installations, piers, and structural beams. It's particularly well-suited for multiple-unit installations in large-scale weighing systems such as truck scales, railroad track scales, and tank/silo weighing applications.

Constructed from durable 304 stainless steel, the SWB220 offers excellent resistance to harsh environments and wash-down conditions. With its IP68/69k protection rating and hazardous area approvals (ATEX, FM, cFM), this load cell delivers reliable performance even in challenging industrial settings.
