Name: 300t SWC515 PM Weighing Module – High-Capacity Carbon Steel Load Cell for Heavy Equipment Scales
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC515 PM CS 300t
Availability: InStock

Home Products

300t SWC515 PM Weighing Module – High-Capacity Carbon Steel Load Cell for Heavy Equipment Scales

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC515 PM CS 300t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	660,000 Lb (300,000 Kg)
Material:	Carbon Steel	Metrology:	Accuracy 0.06%
Load Cell:	0782/GD	Accuracy:	Low
Protection Rating:	IP68/69k	Environment / Material:	Normal / Carbon Steel
Hazardous Approval:	ATEX， FM	Criticality:	Standard
Cable:	98 Ft (30 M)
Highlight:	300t SWC515 weighing module , carbon steel load cell , heavy equipment scales load cell

300t SWC515 PM Weighing Module – High-Capacity Carbon Steel Load Cell for Heavy Equipment Scales

Product Overview

A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.

Key Features

Multi-Purpose Application

Suitable for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high-accuracy stainless hermetic load cell for all applications.

Enhanced Safety & Protection

Includes 360° self-checking, dual lift-off & down-stops, ground strap, hazardous approvals, and IP68-rated stainless load cell.

Simplified Installation

Low-profile design with alignment and rigid locking features. Can be installed with or without the load cell, with no critical orientation requirements.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	660,000 lb (300,000 kg)
Material	Carbon Steel
Metrology Accuracy	0.06%
Load Cell Model	0782/GD
Protection Rating	IP68/69k
Hazardous Approvals	ATEX, FM
Cable Length	98 ft (30 m)

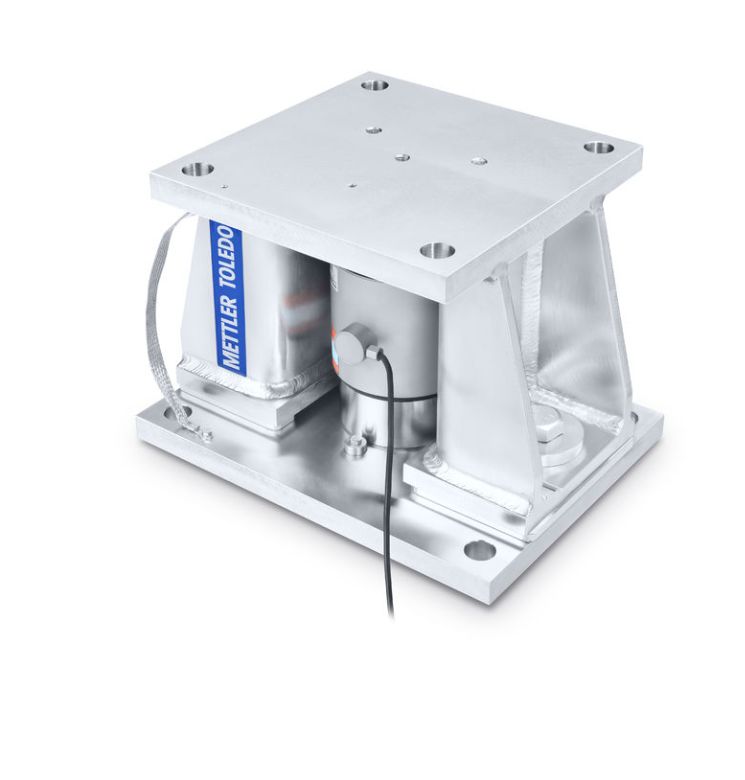

Product Image

Applications

Capacities range from 3 kg to 300 tons, making this module suitable for:

Truck and railroad track scales
Industrial tank weighing systems
Hopper and silo measurement
Large platform scales
