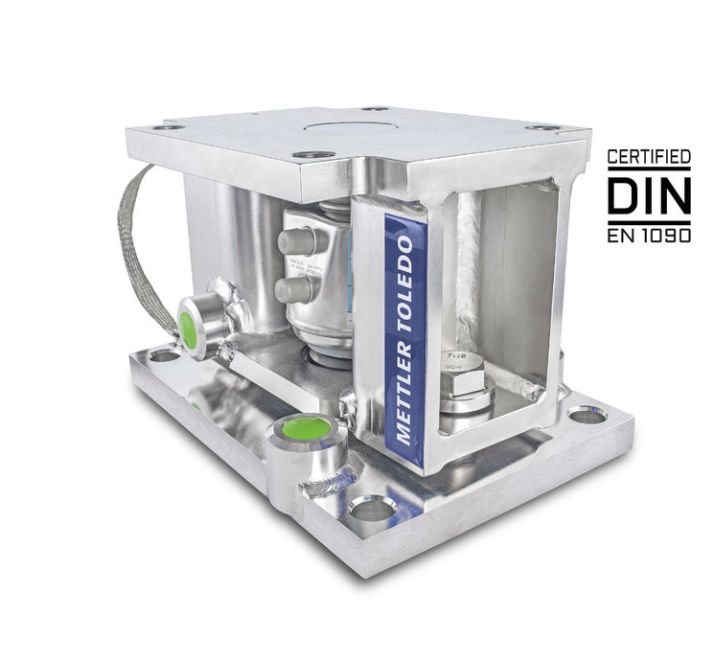

SWC615 PM 30t Stainless Steel Load Cell Module – EN1090 Certified Weighing Solution

A compression weigh module designed for direct attachment to ground, piers, or structural beams. The top plate and base plate compress when weight is applied, making it ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.

• Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors
• High Accuracy: Features fully approved stainless hermetic load cell for all applications
• Enhanced Safety: 360° self-checking, dual lift-off & down-stops, ground strap
• Robust Protection: IP68 stainless load cell with hazardous area approvals
• Easy Installation: Low profile design with non-critical orientation requirements

Model: 1090

Maximum Capacity: 66,000 lb (30,000 kg)

Material: 304 Stainless Steel

Material No: 30263215

Load Cell: POWERCELL PDX

Accuracy: Standard

Metrology: OIML C3, NTEP III 5M

Protection Rating: IP68/IP69k

Environment: Wash-down / Stainless Steel

Hazardous Approvals: ATEX, FM

Ideal for large-scale industrial weighing applications including:

• Truck and railroad track scales
• Tank, hopper, and silo weighing systems
• Industrial process weighing
• Heavy-duty manufacturing applications
