SWC415 PM Load Cell Module – 7.5 Ton Capacity, Carbon Steel Weigh Module for Industrial Use

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC615 PM SS 30T 1090 - Discontinued Product

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	16,500 Lb (7,500 Kg)
Material:	Zinc Plated Steel	Metrology:	ATEX, FM IEC Ex
Load Cell:	SLC611	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX, FM IEC Ex	Criticality:	Standard
Highlight:	7.5 ton carbon steel load cell , industrial PM load cell module , Mettler Toledo weigh module

SWC415 PM Load Cell Module – 7.5 Ton Capacity, Carbon Steel Weigh Module for Industrial Use

Product Overview

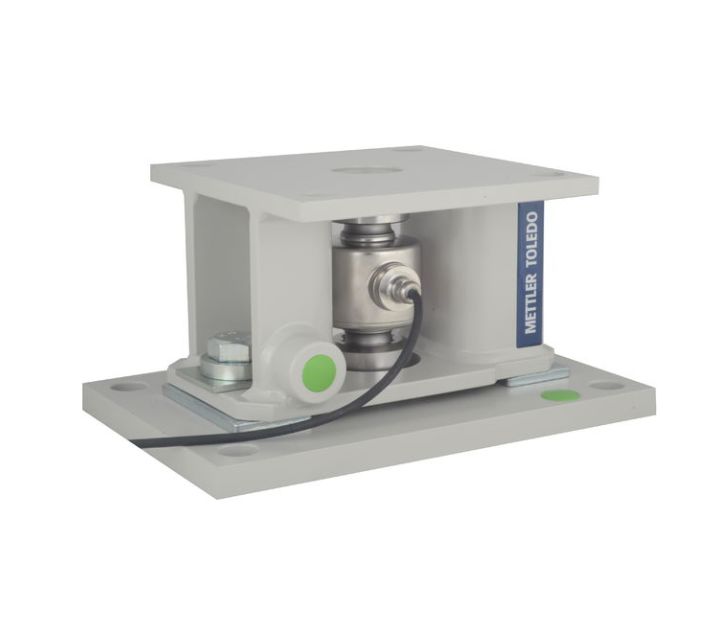

A compression weigh module designed for industrial applications where its top plate and base plate are compressed when weight is applied. This module can be directly attached to the ground, piers, or structural beams, making it ideal for large platform scales such as truck and railroad track scales, as well as tank, hopper, and silo weighing systems.

Key Advantages

Cost Efficient: Economical solution with highly accurate, fully approved stainless load cells suitable for various applications.
Safety & Protection: Features 360-degree self-checking, dual lift-off protection, hazardous approvals, and IP68/IP69K-rated load cell protection.
Ease of Installation: Lightweight, low-profile design with SafeLock technology for easy alignment and rigid installation with or without the load cell installed.

Technical Specifications

Material	Zinc plated steel
Material Number	30295853
Maximum Capacity	16,500 lb (7,500 kg)
Protection Rating	IP68/IP69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX, FM IEC Ex
Load Cell	SLC611
Accuracy	Standard
Metrology	OIML C3, NTEP III 5M

Applications

Ideal for use in truck scales, railroad track scales, tank weighing systems, hoppers, and silos. Suitable for industrial environments requiring robust weighing solutions with capacities ranging from 3 kg to 300 tons.
