Name: SWC415 PM CS 15t Weigh Module Precision Load Cell System
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC415 PM CS 7.5t
Availability: InStock

Home Products Mettler Toledo Load Cell

SWC415 PM CS 15t Weigh Module Precision Load Cell System

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC415 PM CS 7.5t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	33,000 Lb (15,000 Kg)
Material:	Zinc Plated Steel	Metrology:	ATEX, FM IEC Ex
Load Cell:	SLC611	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX, FM IEC Ex	Criticality:	Standard
Highlight:	15-ton precision load cell , Mettler Toledo weigh module , SWC415 PM CS load cell

SWC415 PM CS 15t Weigh Module Precision Load Cell System

Product Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	33,000 lb (15,000 kg)
Material	Zinc plated steel
Metrology	ATEX, FM IEC Ex
Load Cell	SLC611
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM IEC Ex
Criticality	Standard

Product Overview

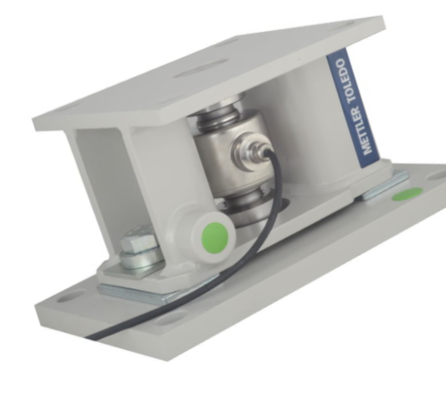

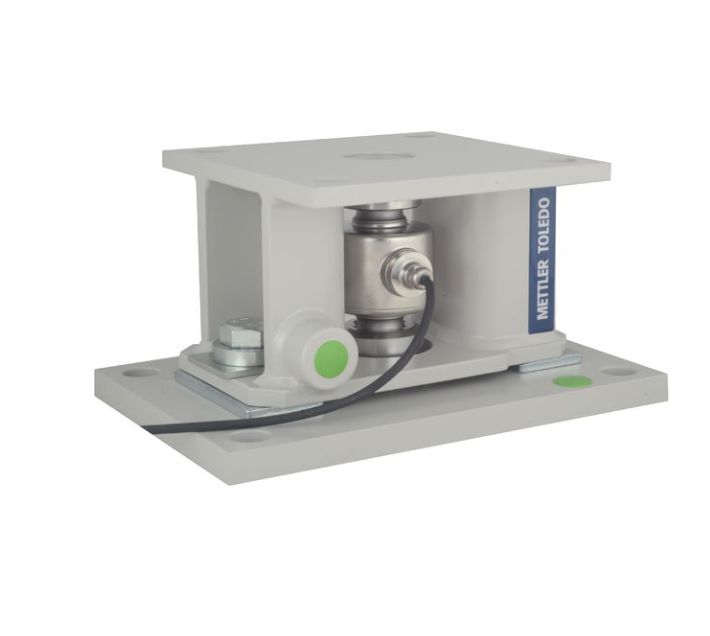

The SWC415 PM CS 15t Weigh Module is a compression weigh module designed for demanding industrial applications. When weight is applied, the system's top plate and base plate compress to provide precise measurements. This robust system can be directly mounted to the ground, piers, or structural beams.

Ideal applications: Use in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems. Capacity ranges from 3 kg to 300 tons.

Key Features

Cost Efficient: Economical design featuring highly accurate, fully approved stainless load cells suitable for diverse applications
Safety & Protection: Includes 360-degree self-checking, dual lift-off protection, hazardous area approvals, and IP68/IP69K-rated load cell protection
Ease of Installation: Lightweight, low-profile design with SafeLock technology for secure alignment and rigid locking, installable with or without the load cell
