Name: 30t SWC415 PM CS Weigh Module – Carbon Steel Heavy-Duty Load Cell System
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC415 PM SS 15t
Availability: InStock

Home Products

30t SWC415 PM CS Weigh Module – Carbon Steel Heavy-Duty Load Cell System

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC415 PM SS 15t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	66,000 Lb (30,000 Kg)
Material:	Zinc Plated Steel	Metrology:	OIML C3, NTEP IIIL 10,000
Load Cell:	0782/GD	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Normal / Carbon Steel
Hazardous Approval:	ATEX, FM IEC Ex	Criticality:	Standard
Cable:	13 M
Highlight:	carbon steel weigh module , heavy-duty load cell system , Mettler Toledo weigh module

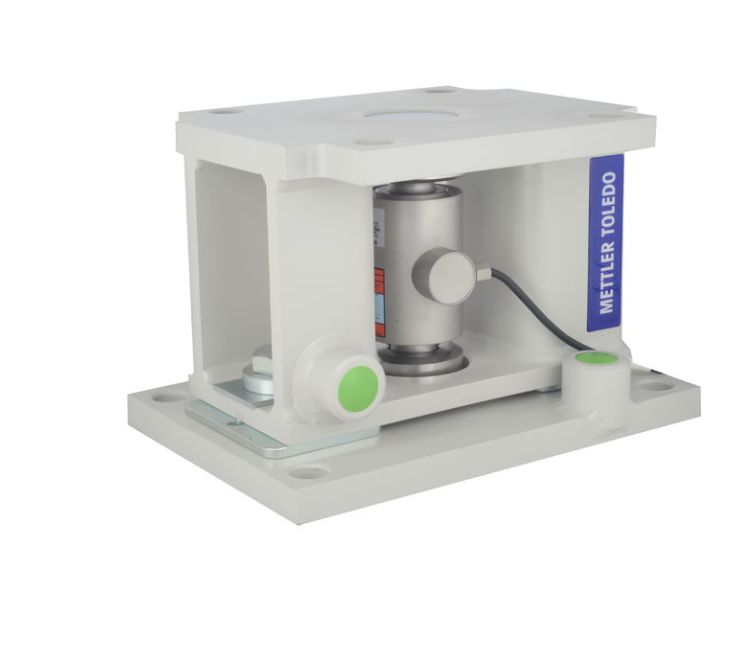

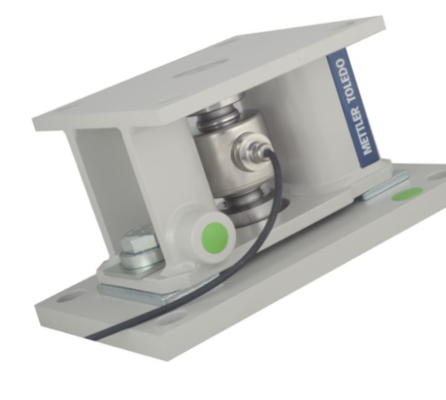

30t SWC415 PM CS Weigh Module – Carbon Steel Heavy-Duty Load Cell System

Key Features

Cost Efficient: Economical solution with highly accurate, fully approved stainless load cells suitable for diverse applications
Safety & Protection: Features 360-degree self-checking, dual lift-off protection, hazardous area approvals, and IP68/IP69K-rated load cell
Ease of Installation: Lightweight, low-profile design with SafeLock technology for secure alignment during installation

Product Description

The 30t SWC415 PM CS compression weigh module is engineered for heavy-duty industrial applications. Its design allows the top plate and base plate to compress when weight is applied, enabling direct attachment to ground surfaces, piers, or structural beams. This system is ideal for large-scale weighing applications including truck scales, railroad track scales, and tank/hopper/silo weighing systems, with capacity ranges from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	66,000 lb (30,000 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX, FM IEC Ex
Criticality	Standard
Cable	13 m
