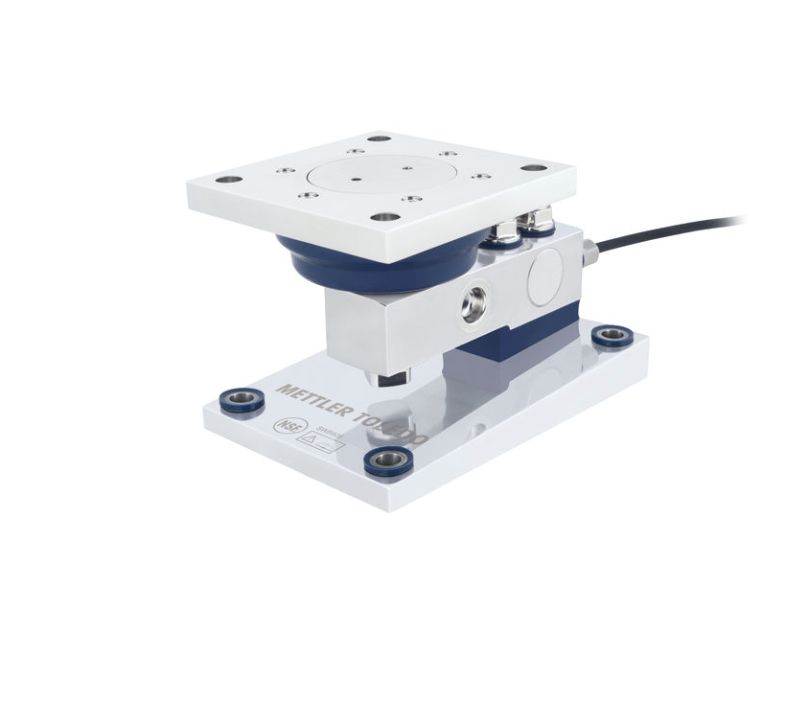

Name: SWB805 Weigh Module 4.4T/10K C1 316 Stainless Steel High-Accuracy Load Cell
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWB805 316 4.4T/10K C1
Availability: InStock

Home Products Mettler Toledo Load Cell

SWB805 Weigh Module 4.4T/10K C1 316 Stainless Steel High-Accuracy Load Cell

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB805 316 4.4T/10K C1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	10,000 Lb (4,400 Kg)
Material:	316 Stainless Steel	Metrology:	NTEP III 1.6 M OIML C1
Load Cell:	SLB815	Accuracy:	Low
Protection Rating:	IP68/69k	Environment / Material:	Frequent Wash-down / Hygienic
Hazardous Approval:	ATEX, FM, CFM	Criticality:	Standard
Cable:	5 M	Material No:	30335576
Highlight:	316 stainless steel weigh module , high-accuracy 10K load cell , Mettler Toledo 4.4T load cell

SWB805 Weigh Module 4.4T/10K C1 316 Stainless Steel High-Accuracy Load Cell

Key Features

316 Stainless steel construction for durability
Maximum capacity: 10,000 lb (4,400 kg)
NTEP III 1.6 M OIML C1 metrology certification
IP68/69k protection rating for harsh environments
Hygienic design with NSF certification
ATEX, FM, cFM hazardous area approvals
Includes 5 m cable

Product Overview

The SWB805 Weigh Module is a high-accuracy load cell designed for demanding industrial applications. Its 316 stainless steel construction and hygienic design make it ideal for food processing, pharmaceutical, and other applications requiring frequent wash-downs.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	10,000 lb (4,400 kg)
Material	316 Stainless steel
Metrology	NTEP III 1.6 M OIML C1
Load Cell	SLB815
Accuracy	Low
Protection Rating	IP68/69k
Environment/Material	Frequent wash-down/Hygienic
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	5 m
Material No	30335576

Design Advantages

Certified Hygienic Solution: Designed according to hygienic principles and NSF certified to minimize contamination risk
Reduced Cleaning Time: Features highly-polished, self-draining surfaces for quick cleaning and drying
Easy Integration: Ships in locked position for simple installation without compromising sealing integrity

Application Information

This compression weigh module is designed so that its top plate and base plate compress when weight is applied. It can be mounted directly to the ground, piers, or structural beams. Ideal for use in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper, and silo weighing applications.
