Name: SWB805 SS Weigh Module 220kg/500lb Load Cell C3 Stainless Steel Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWB805 316 4.4T/10K C1
Availability: InStock

Home Products Mettler Toledo Load Cell

SWB805 SS Weigh Module 220kg/500lb Load Cell C3 Stainless Steel Sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB805 316 4.4T/10K C1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	500 Lb (220 Kg)
Material:	304 Stainless Steel	Metrology:	OIML C3, NTEP III 5M
Load Cell:	SLB815	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Frequent Wash-down / Hygienic
Hazardous Approval:	ATEX, FM, CFM	Criticality:	Standard
Cable:	5 M	Material No:	30335569
Highlight:	stainless steel weigh module , 500lb load cell sensor , Mettler Toledo load cell

SWB805 SS Weigh Module 220kg/500lb Load Cell C3 Stainless Steel Sensor

Key Features

304 Stainless steel construction for durability
500 lb (220 kg) maximum capacity
OIML C3, NTEP III 5M metrology certification
IP68/69k protection rating for harsh environments
Hygienic design with NSF certification
ATEX, FM, cFM hazardous area approvals
Includes 5 meter cable

Product Description

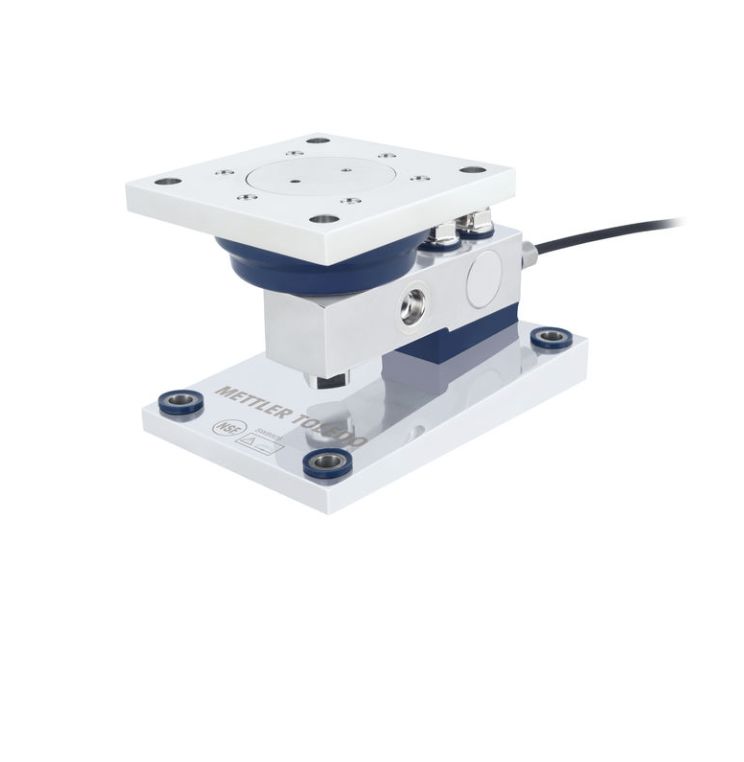

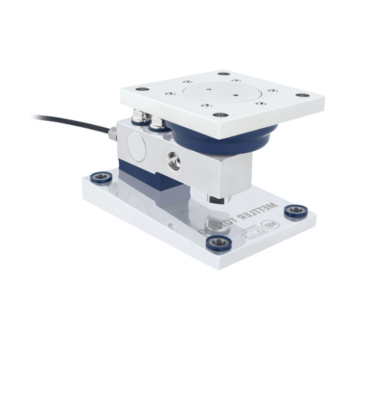

The SWB805 SS Weigh Module is a compression load cell solution designed for industrial weighing applications. Its stainless steel construction and hygienic design make it ideal for food processing, pharmaceutical, and other demanding environments.

Certified Hygienic Solution

Designed according to hygienic principles and NSF certified, this weigh module minimizes contamination risk with its polished surfaces and open design for easy visual inspection.

Operational Advantages

Reduced cleaning time with self-draining surfaces
Easy integration with locked shipping position
No interference with sealing during installation

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	500 lb (220 kg)
Material	304 Stainless steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB815
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Frequent wash-down/Hygienic
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	5 m
Material No	30335569

Application Information

This compression weigh module features top and base plates that compress under load. It can be mounted directly to the ground, piers, or structural beams. Typical applications include platform scales for trucks and railroad tracks, as well as tank, hopper, and silo weighing systems.
