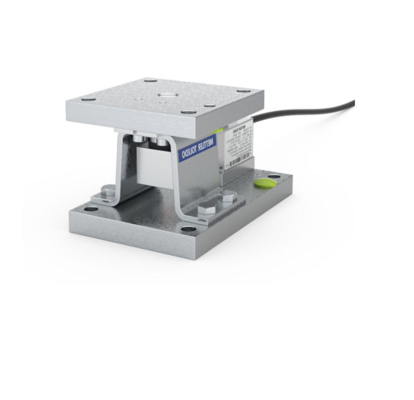

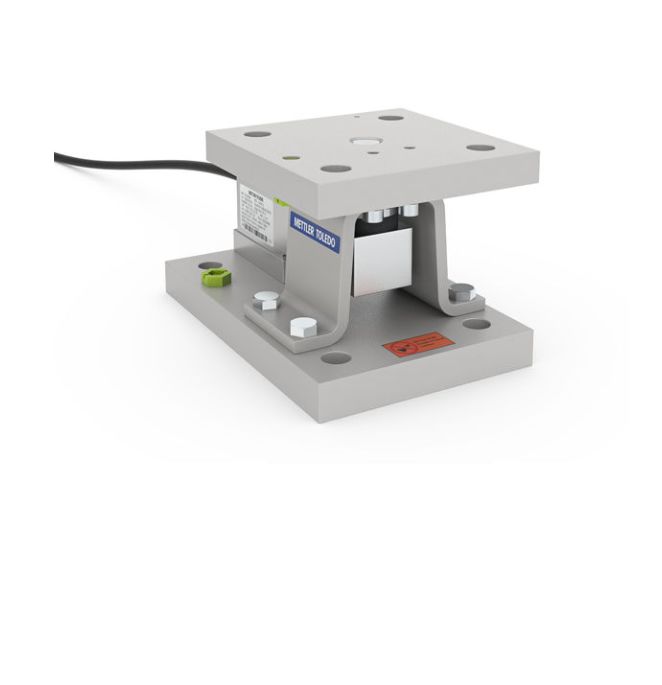

Name: 110kg SWB405 Weighing Module Carbon Steel Load Cell Sensor 5m Cable for Platform Scales
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWB405 220kg 5m SS
Availability: InStock

Home Products Mettler Toledo Load Cell

110kg SWB405 Weighing Module Carbon Steel Load Cell Sensor 5m Cable for Platform Scales

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB405 220kg 5m SS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	250 Lb (110 Kg)
Material:	Powder Coated Carbon Steel	Metrology:	OIML C3, NTEP III 5M
Load Cell:	SLB415	Accuracy:	Standard
Protection Rating:	IP68, NEMA 6	Environment / Material:	Normal / Carbon Steel
Hazardous Approval:	ATEX, FM	Criticality:	Standard
Cable:	5 M
Highlight:	110kg carbon steel load cell , SWB405 weighing module with cable , platform scale load cell sensor

110kg SWB405 Weighing Module Carbon Steel Load Cell Sensor with 5m Cable

Product Overview

A compression weigh module designed for platform scales, featuring a hermetically sealed SLB415 load cell with IP68 rating. Ideal for industrial applications including tank, hopper, and silo weighing with capacities from 3 kg to 300 tons.

Key Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	250 lb (110 kg)
Material	Powder Coated Carbon Steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB415
Accuracy	Standard
Protection Rating	IP68, NEMA 6
Hazardous Approval	ATEX, FM
Cable Length	5 m

Key Features

All Safety on Board: Includes anti-uplift protection, 360° checking and down-stop protection for tank weighing safety
Easy Integration: SafeLock™ feature built into SWB405 MultiMount™ weigh modules for simplified installation
Reliable Weighing: Hermetically sealed SLB415 load cell with IP68 rating meets most industrial requirements

Technical Details

Compression weigh modules are designed to be squeezed when weight is applied, and can be attached directly to ground, piers or structural beams. Typically used in multiples under large platform scales such as truck and railroad track scales.
