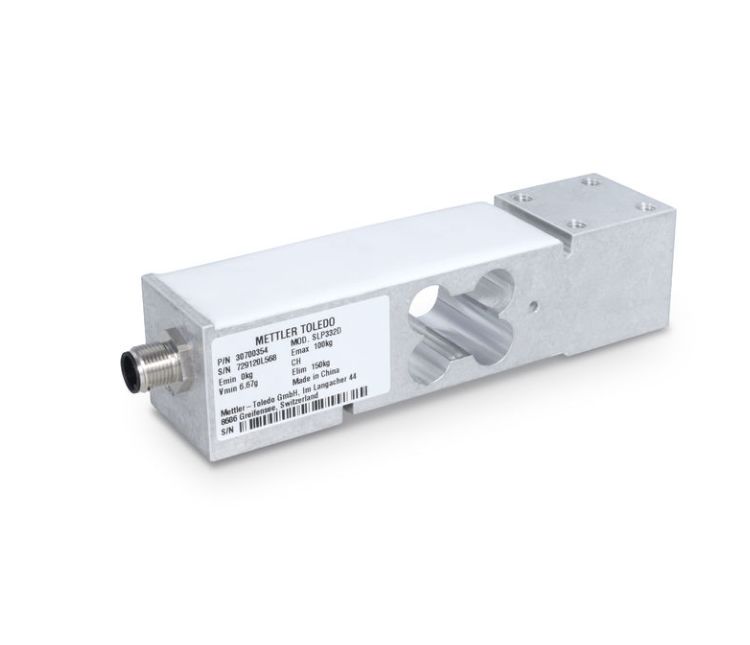

Name: 100kg SLP332D-IOL Load Cell – IO-Link C3/5k Digital Force Sensor for Industrial Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Load Cell SLP332D-IOL-100kg C3/5k
Availability: InStock

Home Products

100kg SLP332D-IOL Load Cell – IO-Link C3/5k Digital Force Sensor for Industrial Weighing

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Load Cell SLP332D-IOL-100kg C3/5k

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	220 Lb (100 Kg)
Material:	Aluminum, Passivated	Metrology:	NTEP III 5,000d OIML C3
Accuracy:	Standard	Protection Rating:	IP67
Hazardous Approval:	ATEX, FM	Criticality:	Standard
Platform Size (LxW):	400 Mm X 400 Mm	Connectivity:	Integrated
Highlight:	100kg IO-Link load cell , digital force sensor for industrial weighing , SLP332D-IOL load cell with warranty

100kg SLP332D-IOL Load Cell – IO-Link C3/5k Digital Force Sensor for Industrial Weighing

Key Features:

Direct PLC connectivity via IO-Link interface
Quick installation with standard cables and connectors
Smart5™ alarms and condition monitoring
NTEP III 5,000d and OIML C3 certified
IP67 protection rating for harsh environments

Product Description

A high-performance compression weigh module designed for industrial applications where its top plate and base plate are compressed when weight is applied. This load cell can be directly attached to the ground, piers, or structural beams, making it ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	220 lb (100 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Hazardous Approval	ATEX, FM
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Integrated

Advanced Features

Integrated PLC Connectivity

The SLP33xD-IOL load cells connect directly to any automation systems via IO-Link, eliminating the need for additional electronic units.

Quick Installation

Standard cables and connectors reduce installation complexity. Factory calibration ensures immediate startup and operation.

Smart5™ Alarms and Condition Monitoring

Continuous condition monitoring with alarms according to NAMUR NE 107 standards results in higher machine uptime and increased productivity.
