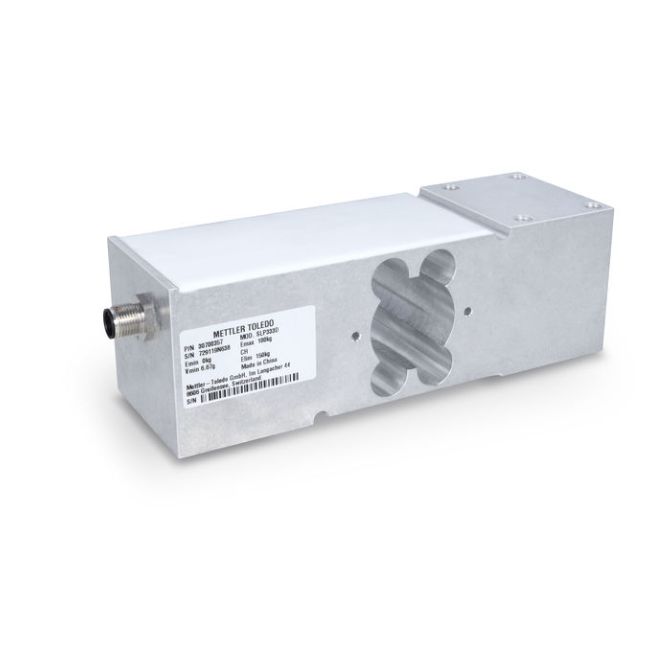

Name: SLP333D-IOL 50kg Load Cell – IO-Link C3/5k Digital Force Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Load Cell SLP333D-IOL-50kg C3/5k
Availability: InStock

Home Products

SLP333D-IOL 50kg Load Cell – IO-Link C3/5k Digital Force Sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Load Cell SLP333D-IOL-50kg C3/5k

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	110 Lb (50 Kg)
Material:	Aluminum, Passivated	Metrology:	NTEP III 5,000d OIML C3
Accuracy:	Standard	Protection Rating:	IP67
Hazardous Approval:	ATEX, FM	Criticality:	Standard
Platform Size (LxW):	600 Mm X 600 Mm	Connectivity:	Integrated
Highlight:	IO-Link digital load cell , 50kg force sensor , C3/5k load cell

SLP333D-IOL 50kg Load Cell – IO-Link C3/5k Digital Force Sensor

Product Overview

A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for use in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.

Key Features

Integrated PLC connectivity via IO-Link interface - no additional electronic unit required

Quick installation with standard cables and connectors

Factory calibrated for immediate startup

Smart5™ alarms and condition monitoring (NAMUR NE 107 compliant)

Enhances machine uptime and productivity

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	110 lb (50 kg)
Material	Aluminum, passivated
Material Number	30801830
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Hazardous Approval	ATEX, FM
Platform Size (LxW)	600 mm x 600 mm
Connectivity	Integrated

Applications

This compression load cell is specifically designed for automation systems requiring direct PLC connectivity. Its robust construction and digital interface make it ideal for industrial weighing applications including:

Large platform scales (truck, railroad track)

Tank, hopper, and silo weighing systems

Industrial process control applications

Hazardous environments (ATEX/FM approved)
