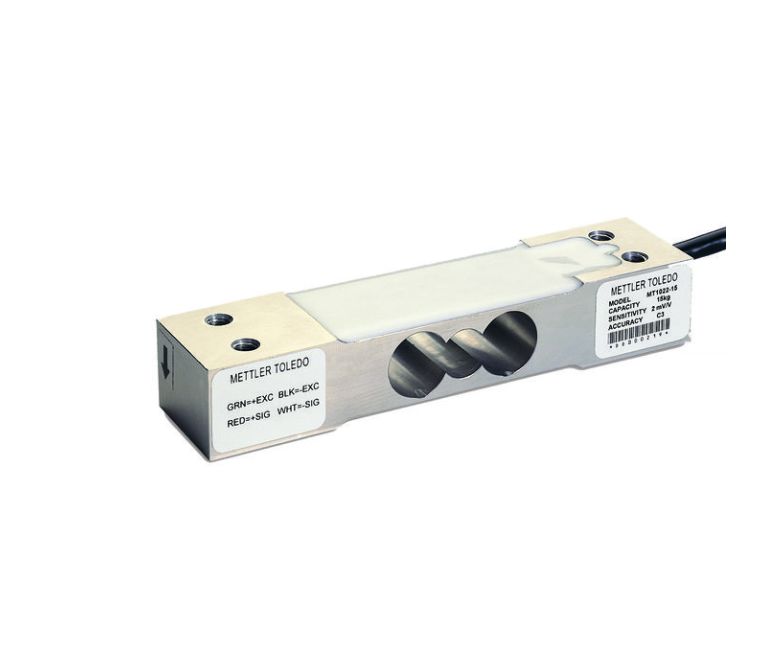

Name: Strain Gauge Load Cell MT1022 30kg – 1m Cable for Heavy-Duty Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Load Cell MT1022-30kg 1m
Availability: InStock

Home Products

Strain Gauge Load Cell MT1022 30kg – 1m Cable for Heavy-Duty Weighing

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Load Cell MT1022-30kg 1m

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	66 Lb (30 Kg)
Material:	Aluminum, Passivated	Metrology:	NTEP III 5,000d OIML C3
Accuracy:	Standard	Protection Rating:	IP67
Platform Size (LxW):	350 Mm X 350 Mm	Connectivity:	Analog
Cable:	3.3 Ft (1 M)
Highlight:	Strain Gauge Load Cell 30kg , Heavy-Duty Weighing Load Cell , MT1022 Load Cell with Cable

Strain Gauge Load Cell MT1022 30kg – 1m Cable for Heavy-Duty Weighing

A high-performance compression weigh module designed for direct attachment to ground, piers, or structural beams. Ideal for truck scales, railroad track scales, and tank/hopper/silo weighing applications.

Key Features

Precision Accuracy: Off-center compensated design handles platform moments with OIML metrology approvals
Durable Construction: Aluminum passivated material with reliable strain gauge technology
Hazardous Area Ready: ATEX Zone 1/21/2/22 approvals as standard
Weather Resistant: IP67 protection rating for demanding environments

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	66 lb (30 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	350 mm x 350 mm
Connectivity	Analog
Cable	3.3 ft (1 m) PVC

Application Details

Designed for small platform applications, this compression weigh module is part of systems that measure forces by squeezing top and base plates together. Commonly used in multiples under large industrial scales including truck scales, railroad track scales, and bulk material handling systems.
