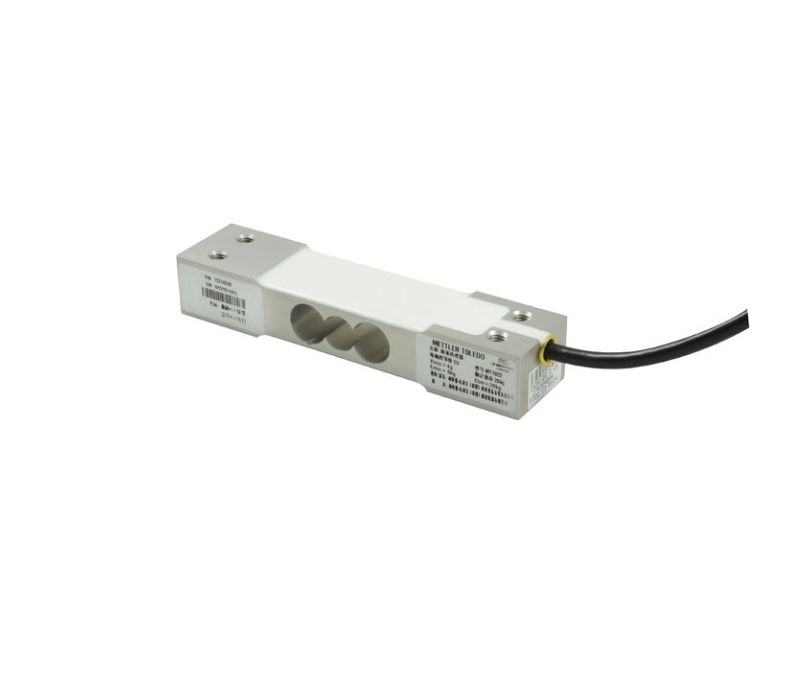

Name: MT1022 Load Cell 3kg 3m – Precision Weight Sensor with Extended Cable
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Load Cell MT1022-3kg 3m
Availability: InStock

Home Products

MT1022 Load Cell 3kg 3m – Precision Weight Sensor with Extended Cable

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Load Cell MT1022-3kg 3m

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	6.6 Lb (3 Kg)
Material:	Aluminum, Passivated	Metrology:	NTEP III 5,000d OIML C3
Accuracy:	Standard	Protection Rating:	IP67
Platform Size (LxW):	350 Mm X 350 Mm	Connectivity:	Analog
Cable:	10 Ft (3 M)
Highlight:	MT1022 3kg load cell , Precision weight sensor with cable , Mettler Toledo 3m load cell

MT1022 Load Cell 3kg 3m – Precision Weight Sensor with Extended Cable

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	6.6 lb (3 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	350 mm x 350 mm
Connectivity	Analog
Cable	10 ft (3 m)

Product Overview

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

For Small Platforms: Load Cell MT1022

Accuracy

A high performance single point load cell. Load cell is off-center compensated thus copes with platform moments. Metrology approvals include OIML as standard.

Reliable Strain Gage Technology

Usage of best aluminum materials & SG technology guarantee long term durability.

Hazardous Area Usage

ATEX Zone 1/21/2/22 approvals as standard. No need to ask for options, no need to stock variations - one fits all.

Specifications

Material

Aluminum, passivated

Material No

72208506

Maximum Capacity

6.6 lb (3 kg)

Protection Rating

IP67

Connectivity

Analog

Cable

PVC

Platform Size (LxW)

350 mm x 350 mm

Accuracy

Standard

Metrology

NTEP III 5,000d
OIML C3
