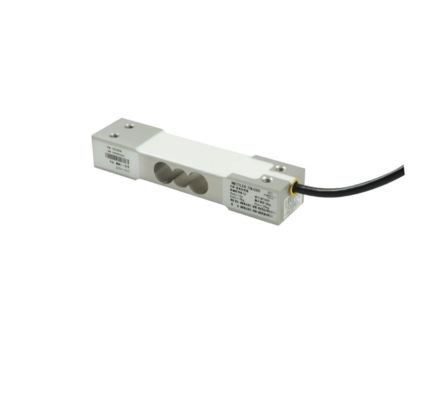

Name: Strain Gauge Load Cell MT1022 10kg – 3m Cable for Industrial and Digital Scales
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Load Cell MT1022-7kg 3m
Availability: InStock

Home Products

Strain Gauge Load Cell MT1022 10kg – 3m Cable for Industrial and Digital Scales

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Load Cell MT1022-7kg 3m

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	22 Lb (10 Kg)
Material:	Aluminum, Passivated	Metrology:	NTEP III 5,000d OIML C3
Accuracy:	Standard	Protection Rating:	IP67
Platform Size (LxW):	350 Mm X 350 Mm	Connectivity:	Analog
Cable:	PVC
Highlight:	Strain Gauge Load Cell 10kg , MT1022 Load Cell for digital scales , Industrial Load Cell with 3m cable

Strain Gauge Load Cell MT1022 10kg – 3m Cable for Industrial and Digital Scales

A high-performance compression weigh module designed for industrial and digital scale applications. The MT1022 load cell features off-center compensation for platform moments and meets stringent metrology standards.

Key Features

High-performance single point load cell with off-center compensation

Reliable strain gauge technology with durable aluminum construction

ATEX Zone 1/21/2/22 approvals included as standard

IP67 protection rating for harsh environments

Ideal for small platform applications in industrial weighing systems

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	22 lb (10 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	350 mm x 350 mm
Connectivity	Analog
Cable	PVC

Application Details

The MT1022 compression weigh module is designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. These modules are commonly used in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems.
