Name: MT1022 15kg Load Cell – Compact Weighing Sensor with 3 Meter Wire
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Load Cell MT1022-15kg 3m
Availability: InStock

Home Products

MT1022 15kg Load Cell – Compact Weighing Sensor with 3 Meter Wire

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Load Cell MT1022-15kg 3m

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	33 Lb (15 Kg)
Material:	Aluminum, Passivated	Metrology:	NTEP III 5,000d OIML C3
Accuracy:	Standard	Protection Rating:	IP67
Platform Size (LxW):	350 Mm X 350 Mm	Connectivity:	Analog
Cable:	10 Ft (3 M)
Highlight:	MT1022 15kg load cell , compact weighing sensor , load cell with 3 meter wire

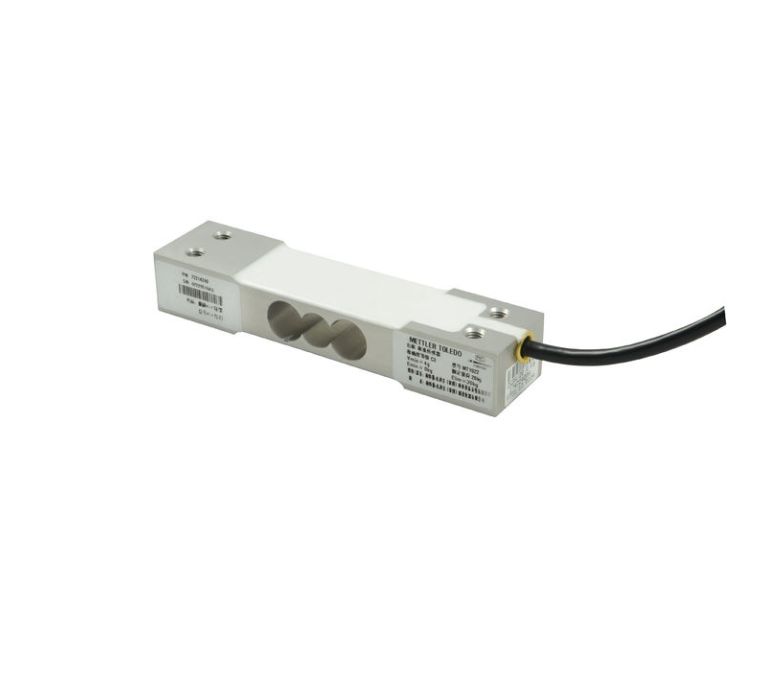

MT1022 15kg Load Cell – Compact Weighing Sensor with 3 Meter Wire

Product Overview

A high-performance compression weigh module designed for direct attachment to ground, piers, or structural beams. Ideal for small platform scales with capacities ranging from 3 kg to 300 tons.

Key Features

High Accuracy: Off-center compensated design handles platform moments with OIML metrology approvals
Durable Construction: Aluminum passivated material with reliable strain gauge technology
Hazardous Area Ready: ATEX Zone 1/21/2/22 approvals included as standard
Weather Resistant: IP67 protection rating for reliable operation in demanding environments

Technical Specifications

Maximum Capacity	33 lb (15 kg)
Material	Aluminum, passivated
Metrology Approvals	NTEP III 5,000d OIML C3
Protection Rating	IP67
Platform Size	350 mm × 350 mm
Connectivity	Analog
Cable Length	10 ft (3 m) PVC

Applications

Ideal for small platform scales, tank weighing, hopper measurement, and other industrial weighing applications requiring compact, high-accuracy sensors.
