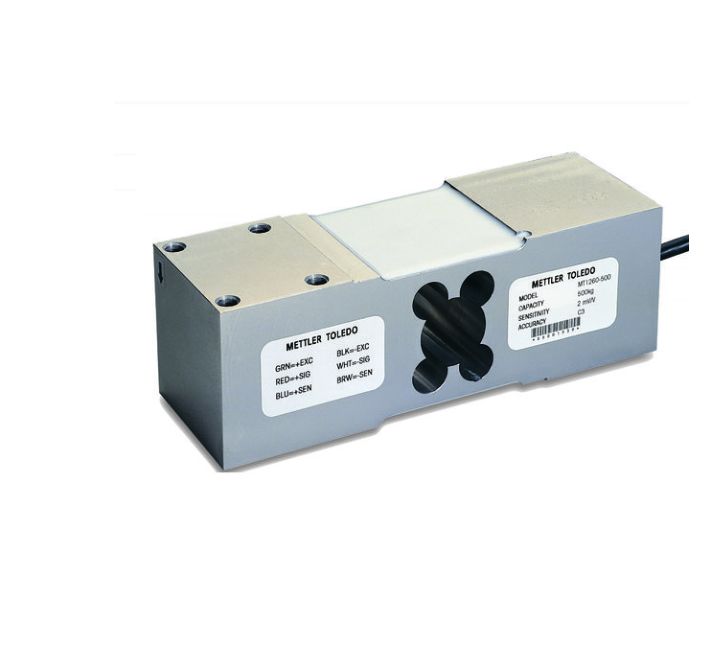

Name: Strain Gauge Load Cell MT1260 500kg – 2m Cable for Platform and Floor Scales
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Load Cell MT1260-500kg 2m
Availability: InStock

Home Products

Strain Gauge Load Cell MT1260 500kg – 2m Cable for Platform and Floor Scales

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Load Cell MT1260-500kg 2m

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	1,120 Lb (500 Kg)
Material:	Aluminum, Passivated	Metrology:	NTEP III 5,000d OIML C3
Accuracy:	Standard	Protection Rating:	IP67
Platform Size (LxW):	600 Mm X 600 Mm	Connectivity:	Analog
Cable:	6.6 Ft (2 M)
Highlight:	Strain Gauge Load Cell 500kg , MT1260 Load Cell for platform scales , Floor scale load cell with 2m cable

Strain Gauge Load Cell MT1260 500kg – 2m Cable for Platform and Floor Scales

A high-performance compression weigh module designed for platform and floor scales. The MT1260 load cell features off-center compensation to handle platform moments, making it ideal for large-scale weighing applications.

Key Features

High Accuracy: Off-center compensated design with OIML metrology approvals
Durable Construction: Aluminum passivated material for long-term reliability
Hazardous Area Ready: ATEX Zone 1/21/2/22 approvals included as standard
Environmental Protection: IP67 rating for dust and water resistance

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	1,120 lb (500 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	600 mm x 600 mm
Connectivity	Analog
Cable	6.6 ft (2 m)

Application Details

Designed for compression weighing applications where the top plate and base plate are squeezed together when weight is applied. Ideal for direct attachment to ground, piers, or structural beams. Commonly used in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems.
