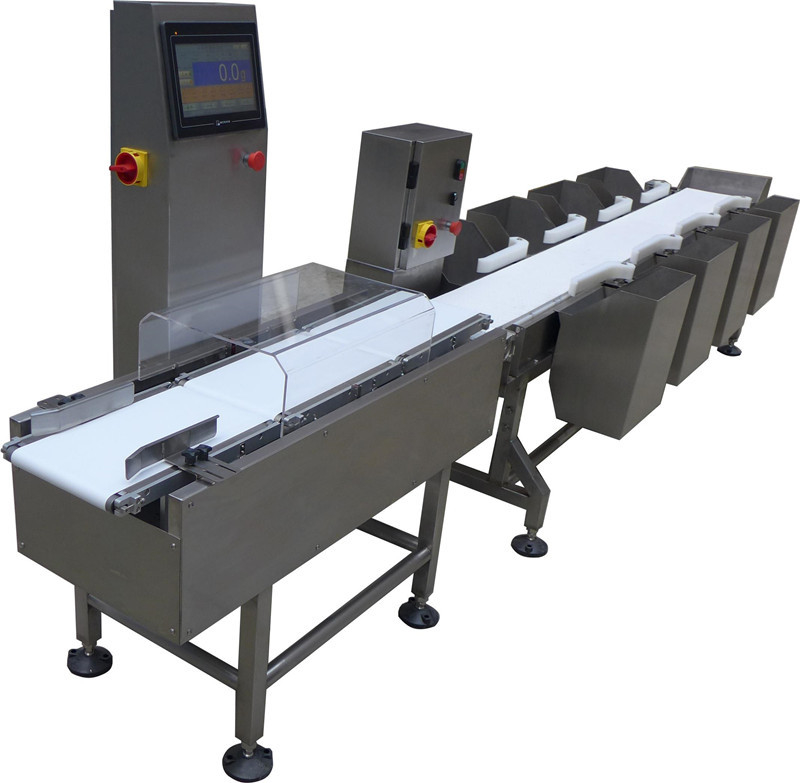

Name: Automated Weighing Systems in Food Production with Precision, Safety
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Automated Weighing Systems in Food Production with Precision, Safety
Availability: InStock

Home Products Automatic Checkweigher

Automated Weighing Systems in Food Production with Precision, Safety

Product Details:

Place of Origin:	CHINA
Model Number:	Automated Weighing Systems in Food Production with Precision, Safety

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Automated Weighing Systems In Food Production With Precision, Safety	Accuracy Range:	±0.1g To ±5g (depending On Product)
Repeatability:	±0.1% Of Measured Value	Minimum Detectable Deviation:	0.5g (for Foreign Object Detection)
Max Throughput:	50-600 Items/minute (belt Speed 10-60m/min)	Weighing Cycle Time:	50-500ms
Metal Detection Sensitivity:	Ferrous: 0.3-1.0mm, Non-ferrous: 0.5-1.5mm, Stainless: 1.0-2.5mm	X-ray Detection Capability:	0.8-2.0mm (bone, Glass, Stone Fragments)
Rejection System Response:	<0.3 Seconds	Material Grade:	316L Stainless Steel, IP69K-rated Components
Cleanability:	FDA-compliant Surfaces, CIP (Clean-in-Place) Compatible	Operating Temperature:	-30°C To +50°C (special Models For Freezer Applications)
Communication Protocols:	Ethernet/IP, PROFINET, OPC UA, RS-232	Software Compliance:	HACCP, FDA 21 CFR Part 11, EU Regulation 1169/2011
Data Recording:	100% Product Traceability With Timestamps And Batch Codes	Conveyor Width:	200-1000mm (adjustable For Different Package Sizes)
Maximum Load Capacity:	0.1-50kg (food-grade Models)	Operating Voltage:	100-240V AC, 50/60Hz Or 24V DC For Washdown Areas
Air Pressure (for Rejection):	4-6 Bar (when Using Pneumatic Rejectors)
Highlight:	automated weighing systems for food production , precision automatic checking weigher , safety compliant food weighing systems

Automated Weighing Systems in Food Production with Precision, Safety

Automated weighing systems have become indispensable in modern food production, ensuring precision, safety, and regulatory compliance while optimizing efficiency. These systems integrate high-accuracy load cells, smart sensors, and AI-driven analytics to monitor product weight, detect contaminants, and prevent packaging errors—critical factors in maintaining food quality and consumer trust.

Key Features

High-Precision Weighing Technology: Accuracy of ±0.1g to ±1g (depending on product type). Dynamic weighing measures products in motion at speeds up to 600 items/minute. Multi-head weighing systems ensure portion consistency for unevenly shaped products.
Enhanced Food Safety Measures: Integrated X-ray or metal detectors flag foreign objects before packaging. Checkweighing ensures compliance with FDA, EU FIC, and FSMA regulations. Hygienic design with stainless steel (IP69K-rated) and washdown-compatible components.
Automation & Smart Factory Integration: Real-time data tracking monitors weight trends and logs deviations. ERP/MES connectivity syncs with SAP, Oracle, or SCADA systems. AI and machine learning predict equipment wear and optimize processes.

Key Benefits

Regulatory Compliance - Meets FDA, HACCP, ISO 22000, and EU FIC standards
Reduced Waste - Minimizes product giveaway and underfilled packages
Improved Efficiency - Processes up to 10x faster than manual inspection
Enhanced Traceability - Digital records for recalls and quality audits
Consumer Safety - Detects contaminants (metal, glass, plastic) before distribution

Technical Specifications

Parameter	Specifications
Accuracy Range	±0.1g to ±5g (depending on product)
Repeatability	±0.1% of measured value
Minimum Detectable Deviation	0.5g (for foreign object detection)
Max Throughput	50-600 items/minute (belt speed 10-60m/min)
Weighing Cycle Time	50-500ms
Metal Detection Sensitivity	Ferrous: 0.3-1.0mm, Non-ferrous: 0.5-1.5mm, Stainless: 1.0-2.5mm
X-ray Detection Capability	0.8-2.0mm (bone, glass, stone fragments)
Rejection System Response	<0.3 seconds
Material Grade	316L stainless steel, IP69K-rated components

Automated weighing systems are critical for food producers to ensure accuracy, safety, and efficiency while adhering to strict regulations. By leveraging smart sensors, AI, and IoT connectivity, manufacturers can reduce waste, avoid recalls, and maintain brand integrity in a competitive market.
