    Product Details:

    Place of Origin: CHINA
    Brand Name: SMARTWEIGH
    Certification: ISO/CE/SGS
    Model Number: HWTS 7565

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Scales body with plastic film package, electronic parts with carton box
    Delivery Time: 3-8 weeks
    Payment Terms: LC,T/T, Weston Union, MoneyGram
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Max Capacity: 60-150T Verification Scale Value: 10-20Kg
    Weighing Platform Width: 3/3.4/4/4.5( Can Customized) Weighing Platform Length: 6-24m (can Customized)
    CLC: Over 30% Of Total Capacity Name: Concrete Platform Weighbridge
    USE: Weighing For Trucks
    High Light:

    pitless type weighbridge

    ,

    vehicle weighing solutions

    Reinforced Concrete Weighbridge Heavy Duty Concrete Deck Weighbridge Concrete Platform Weighbridge

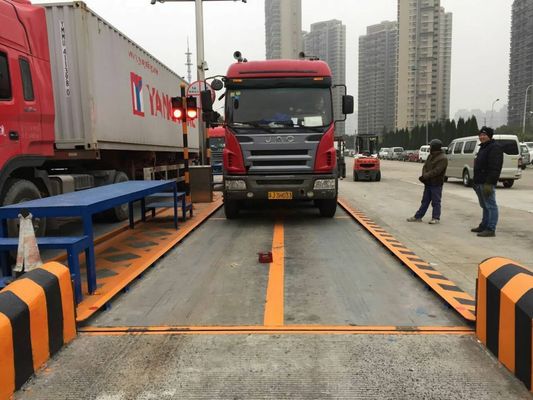

    Model 7565 is a concrete-deck scale for weighing vehicles that are are applied widely in chemical industry, petroleum, gas, sea port and high acid, high alkali, high salt places and also explosive environment. Reinforced concrete deck is framed by steel channel that is welded to steel support modules. Smartweigh compression load cells transmit a powerful signal for accurate, reliable weighing.





    Specification Of Reinforced Concrete Weighbridge:



    Truck Scale Capacity Section Parts Load cell TEU Container
    3*10M 30-60t 2 4 6 20GP
    3*12M 30-60t 2 4 6 20GP or 4GP
    3*14M 50-100t 3 6 8 20GP
    3*15M 60-100t 3 6 8 20GP
    3*16M 60-100t 3 6 8 20GP
    3*18M 60-150t 3 6 8 40GP
    3*20M 60-150t 4 8 10 40GP
    3*24M 60-150t 4 8 10 40GP
    3.4*12M 30-60t 2 4 6 20GP or 40GP
    3.4*14M 50-100t 3 6 8 20GP
    3.4*16M 60-100t 3 6 8 20GP
    3.4*18M 60-150t 3 6 8 40GP
    3.4*20M 60-150t 4 8 10 40GP
    3.4*24M 60-150t 4 8 10 40GP



    Features and Advantages reinforced concrete weighbridge:



    1. The concrete deck exists no indentation after long time use.

    2. The decks are non-conductive, can protect from the lighting effectively, avoiding the load cells from damage.
    3. Anti-rust, anti-oxidation, anti-wet, and full adapt to the full chemical rust environment.
    4. Applied in rusted chemical companies, sea port and construction sites.
    5. Measure linearity is good and especially suitable for high weight trucks requirement.
    6. The concrete can be pre-fabricated in modulars or poured in end user’s installation sites
    7. Explosive proof weighing system (full take advantage of concrete platforms physical features).
    8. Special long deck sizes weighing system (can extend the deck length and no affect from the natural conditions).
    9. All purposed universal truck scale weighing functions.
    10. Convenient for container shipping.
    11. Full range of capacity : 60T, 80T, 100T, 120T, 150T, up to 200T.



                                                                        Truck Weight Scale Civil Work Foundation Types:



    1. Pitless Foundation: Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine
    1. Least Expensive
    2. Piers support each load bearing point
    3. Wash-out slabs sometimes included
    2. Shallow Foundation: Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine
    1. Additional beams of concrete run the length and width of the scale
    2. Stronger than pier style foundation
    3. Pit Style Foundation: Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine
    1. Depth of pit varies per project and is often a custom solution
    2. Must allow minimum depth for technician to access components beneath the weighbridge
    3. Can require additional care for cleaning as pit can collect debris





     Truck Weighbridge Manufacturing Process

    . Bending Machine to Shape the Under Beams 2. CNC Cutting machine to satisfy the customized requests 3. Arching Machine
    Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine
    4. Automatic Welding Machine 5.Ball Blasting Machine 6. Make the surface more neatly
    Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine
    7. Baking paint Room 8. Installation and pre-calibration before shipping 9. Shipping Container by Sea or Railway
    Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine Multi Deck Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine









          Our High Accuracy compression type loadcells :

    1. Nickel plated alloy steel IP68 dual shear beam load cell
    2. High accuracy OIML R60 C3
    3. Capacity:10-50t
    4. Current calibrated



    Reinforced Concrete Truck Scale Weighbridge 3*18M Vehicle Weighing Systems 12

              Digital Indicator D2008 with LCD backlight:



    1.A built-in constand current float charging circuit can protect the battery better;

     2. Fast storage design to solve the problem of full record store;

    3.Support custom fill typeset and printing function;

    4. Ioslation and anti-static design prevent loadcell from device electric.

    5. Support E custom made dynamic encryption protocol and K protocol, improve anti cheating device

    Reinforced Concrete Truck Scale Weighbridge 3*18M Vehicle Weighing Systems 13



    Business Trade Terms:

    1. HS code : 84238990
    2. Delivery Port: SHANGHAI , NINGBO, QINGDAO
    3. Trade terms: EXW, FOB, CNF,CIF, DAP, DDU,DDP
    4. Payment terms: T/T or L/C, 30% advanced payment for production, balanced. PAYPAL, WESTION UNION.
    5. Professional Installation: We can send technician or require local agent installation
    6. After sales service: We can help the maintenance whenever you need





    Reinforced Concrete Truck Scale Weighbridge 3*18M Vehicle Weighing Systems 14







                                                       Truck Scale Customization



    SMARTWEIGH has a team of engineers dedicated to custom vehicle weighing applications.

    Common customizations and specialty projects have included:

                                         · Additional length/width

                                         · Grain dump grating (full-length or partial)

                                         · Special finishes (galvanization, coating, or color requests)

                                         · Added deck plate thickness

                                         · Wear plates (fully welded)

                                         · Stainless steel

                                         · Special side-rails

                                         · Special filling applications

                                         · Axle scales

                                         · Vehicle scale refurbishing
