|Place of Origin:||CHINA|
|Model Number:||WIM 7612|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden Cases|
|Delivery Time:||3-8 weeks|
|Payment Terms:||LC,T/T, Weston Union, MoneyGram|
|Supply Ability:||100 sets per month|
|Max Axle Cap:||10-40T||Verification Scale Value:||5-10Kg|
|Weighing Platform Sizes:||3.0M X0.9Mx300mm||Weighing Platform Sizes Optional:||3..0Mx1.8Mx300mm|
|Weighing Speed:||0-30km/h||Terminal Controller:||Standard Dynamic Controller|
|Name:||Truck Axle Scales/ Axle Weigher||Use:||Weighing For Truck Axles|
axle weights for trucks,
axle weighing system
Weigh-in-Motion Systems provide an important tool in commerce. Whether at the mine, on the road or across the country on rail, truck scales accurately determine the weights of transported commodities and finished goods.Weigh-in-Motion Systems are available for use in the enforcement, monitoring and analysis of trucks on the road. They offer a cost-effective solution to help contain infrastructure expenses by monitoring the weight of commercial trucks as they travel over the highway.WIM technology can measure the per-axle weight and gross weight of vehicles while they are travelling at highway speed. It detects axle-spacing so that vehicles can be identified by class, and also records the vehicle’s speed.

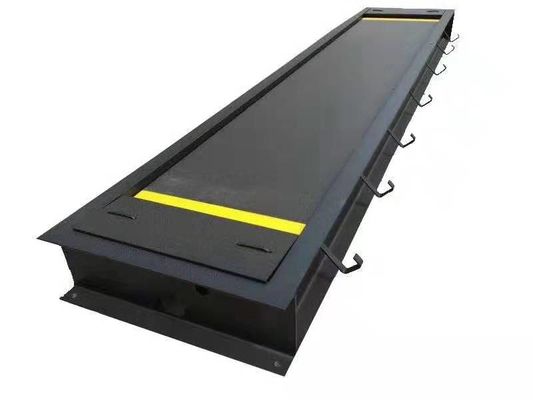

Specification of the dynamic axle weighing scales:
|Platform Sizes||3.2M x 0.9M x 300mm|
|Platform Sizes Optional||3.2M x 1.8M x 300mm|
|Terminal Controller||Standard Dynamic controller|
|Customize||ODM & OEM|
|Warranty||Electronic parts 1 year, weighing platforms 3 years|
|Delivery time||3-8 weeks|
|Country of Original||CHINA|
|Production Avalability||100 Sets per month|
|Export Port||Shanghai , Ningbo, Qingdao etc|
|Payment Terms||50% deposit T/T, 50% balanced before shipping.|
1. Both dynamic weighing and static weighing.
2. Slow speed WIM systems for Highway and commercial toll stations.
3. Maintenance costs are slow and life cycle costs are attractive.
4. Civil works costs and foundation occupied area is small.
5. It weighs different kinds of lorry unrestricted with vehicle type, capacity etc.
1. Rated load capacity: ≥30t.
2. Over load: 150%
3. Dynamic accuracy: 1%-2%
4. Static accuracy: +/- 0.5%
5. Controller protect class: IP65
6. Load cells protect class: IP68
7. Work temperature: -45 - +80℃
8. Minimum distance between vehicles: 200mm.
9. Power supply: 110-220V
10. Output data: axle weight,group axle weight, entire vehicle weight, axle numbers, axle type, vehicle type, wheel base, speed, date and time, serial number, vehicle accelerate, transfinite discriminate identification.
1. Warranty: One year
2. Export port: EXW factory or FOB shanghai.
3. Trade terms: EXW, FOB, C&F
4. Payment terms: 50% deposit, balanced before shipping.
5. Place of origin: China
6. Packing: Wooden cases
7.Delivery time: 3-8 weeks.
8. Certificate: ISO. CE
9. Production Avalability: 100 Sets per month.
