Electronic Digital Floor Truck Scale Weighbridge 100 Ton

Electronic Digital Floor Truck Scale Weighbridge 100 Ton

  • Electronic Digital Floor Truck Scale Weighbridge 100 Ton
Electronic Digital Floor Truck Scale Weighbridge 100 Ton
Product Details:
Place of Origin: CHINA
Certification: ISO/CE/SGS
Model Number: HWTS 7570
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Scales body with plastic film package, electronic parts with carton box
Delivery Time: 3-8 weeks
Payment Terms: LC,TT, Weston Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Max Capacity: 10-300T Verification Scale Value: 5-100Kg
Weighing Platform Width: 3/3.4/4/4.5( Can Customized) Weighing Platform Length: 6-24m (can Customized)
Civil Work Type: Pitless Foundation Weighing Mode: Analog
Name: Pitless Type Weighbridge Use: Weighing For Vehicles
High Light:

Digital Floor Truck Scale Weighbridge


100 Ton Truck Scale Weighbridge


Pitless Electronic Weighing Bridge System

Electronic 100 Ton Digital Floor Truck Scale Weighbridge

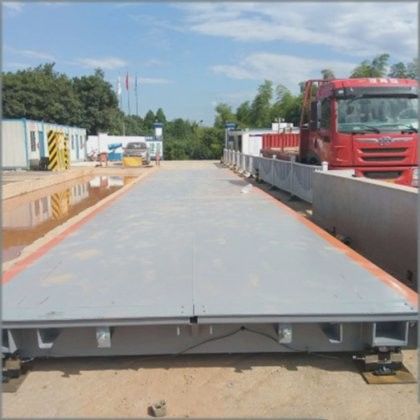

Model 7570 is a steel deck scale for weighing over-the-road legal trucks and certain off-road vehicles. The design is flexible and can be tailored to match your specific application requirements. The orthotropic design provides reliable weighing over a long service life, while our high accurate load cells transmit an extremely powerful signal for accurate, dependable weighing. In addition, the steel deck design is ideal for operations that need their scale up and running quickly.


Specification of Road Weighbridge Vehicle Weighbridge :


Truck Scale Capacity Section Parts Load cells Qty TEU Container
3*6M 20-50t 1 2 4 20GP
3*7M 20-50t 1 2 4 40GP
3*8M 20-50t 2 4 6 20GP
3*9M 30-60t 2 4 6 20GP
3*10M 30-60t 2 4 6 20GP
3*12M 30-60t 2 4 6 20GP or 4GP
3*14M 50-100t 3 6 8 20GP
3*15M 60-100t 3 6 8 20GP
3*16M 60-100t 3 6 8 20GP
3*18M 60-150t 3 6 8 40GP
3*20M 60-150t 4 8 10 40GP
3*24M 60-150t 4 8 10 40GP
3.4*12M 30-60t 2 4 6 20GP or 40GP
3.4*14M 50-100t 3 6 8 20GP
3.4*16M 60-100t 3 6 8 20GP
3.4*18M 60-150t 3 6 8 40GP
3.4*20M 60-150t 4 8 10 40GP
3.4*24M 60-150t 4 8 10 40GP


Features and Advantages of the Road Weighbridge Solutions:

  1. The modular design of these products allow for customization to suit your exact needs.
  2. Every new weighbridge design undergoes rigorous lifecycle testing.
  3. Full steel stronger structure designed for concentrated loads and frequent use.
  4. Proven design of the bridge type U-type welded ribs help direct the pressure of a heavy load away from areas.
  5. Divide into several panels, easy to move platforms and container transportation.
  6. Easy installation, calibration, and maintenance.
  7. Automatic professional welding along the seam of each rib to the deck ensure lasting strength.
  8. High performance load cells, good accuracy and reliability make clients maximum income.
  9. Explosion proof types suitable for working in hazardous areas available upon request
  10. Many storage functions: Vehicle number, Tare storage, Accumulation storage and many data report output.

 Our Road Weighbridge High Accuracy ball type loadcells :

  1. Nickel plated alloy steel IP68 dual shear beam load cell
  2. High accuracy OIML R60 C3
  3. Capacity:10-50t
  4. Current calibrated

Electronic Digital Floor Truck Scale Weighbridge 100 Ton 0


Digital Indicator A9P with LED backlight:

  1. AC/DC power supply.
  2. User-defined printing content and format:
  3. User-defined printing format, and be able to connect with serial printing interface and thermal printer
  4. Reliable shield and anti-jamming:
  5. Adopts hardware for shielding and reduces external-jamming and damage of interface.                                                                                        Electronic Digital Floor Truck Scale Weighbridge 100 Ton 1


Standard accessories of electronic parts:

  1. High Precision Load cells
  2. Digital Weight Indicator
  3. Stainless Junction Box with signal cables


Optional accessories of electronic parts:


  1. Big scoreboard.
  2. PC and Printer or Weight Bill
  3. Management weighing system software
  4. Unattended Systems for the vehicle sale (Camera, traffic lights, barrier gate, louder speaker etc) .


Optional parts for the weighing platforms:

  1. Two side rails for protection of the trucks driving.
  2. Climb steel ramps for trucks easy get on and off the weighing platforms.
  3. Temporary Frame to make the weighbridge portable easily
  4. Man hole plates customized.



Business Trade Terms:


  1. HS code : 84238990
  2. Delivery Port: SHANGHAI , NINGBO, QINGDAO
  3. Trade terms: EXW, FOB, CNF,CIF, DAP, DDU,DDP
  4. Payment terms: T/T or L/C, 30% advanced payment for production, balanced. PAYPAL, WESTION UNION.
  5. Professional Installation: We can send technician or require local agent installation
  6. After sales service: We can help the maintenance whenever you need


Truck Weighbridge Manufacturing Process

Electronic Digital Floor Truck Scale Weighbridge 100 Ton 2

· 3. Why Choose Us to be your supplier?

  •  Our company is well known and professional to supply the truck scales, floor scales, railway scales and other industrial scales.
  • We have shot blasting machine, shearing machine, bending machine, pre-arch machine, automatic welding machine, Baking paint room and 20 ton crane equipment.
  • We have as large as 25,000 square meter workshops equipped with professional manufacturing equipments, the pipeline production is highly efficient .
  • We have professional service and technical team help to customize your different needs
  • Our warranty is 5 years for the complete set scale, whenever you have problem, we will get in touch with you timely.
