Electronic Weigh Bridge Car Weighing Bridge Digital Truck Scale

Electronic Weigh Bridge Car Weighing Bridge Digital Truck Scale

  • Electronic Weigh Bridge Car Weighing Bridge Digital Truck Scale
Electronic Weigh Bridge Car Weighing Bridge Digital Truck Scale
Product Details:
Place of Origin: CHINA
Brand Name: SMARTWEIGH
Certification: ISO/CE/SGS
Model Number: HWTS 7572
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Scales body with plastic film package, electronic parts with carton box
Delivery Time: 3-8 weeks
Payment Terms: LC,T/T, Weston Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Max Capacity: 30-120T Verification Scale Value: 10-20Kg
Weighing Platform Width: 3/3.4meter Weighing Platform Length: 6-24m (can Customized)
Configuration: Basic Portable CLC: 30% Maxle Axle Load Of The Total Capacity
Use: Weigh The Weight Of The Product,Heavy Goods Product Name: Digital Truck Scale 60 Ton Portable Weighbridge
Display: Big LCD Display,LED/LCD Structure: U Beam Girders With 6pcs And 6mm Thickness,Painted Steel
High Light:

3.4m Electronic Weighbridge

,

120T Car Weighing Bridge

,

Electronic Weighbridge Digital Truck Scale

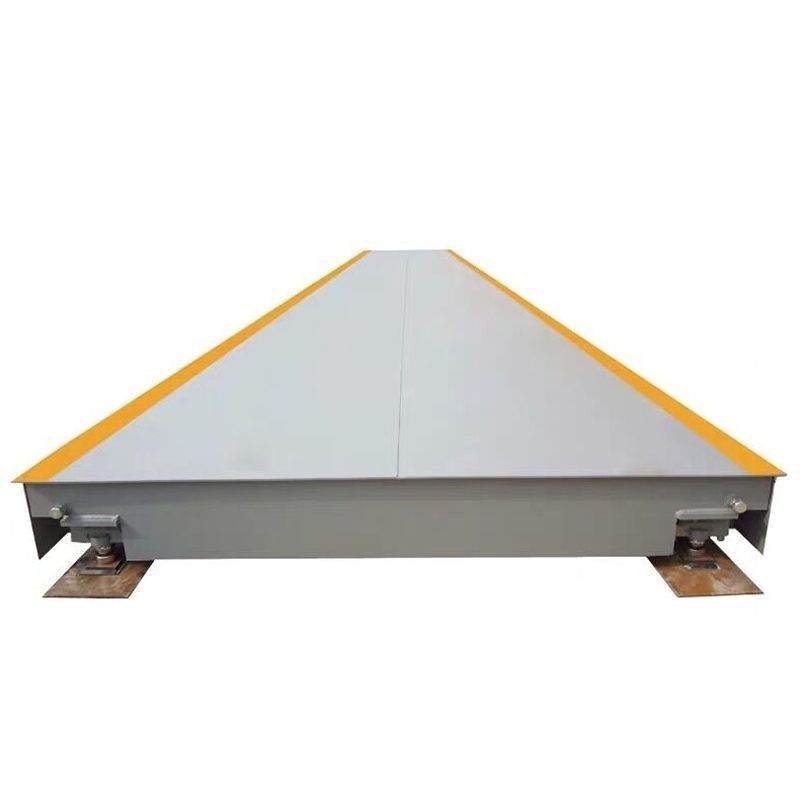

Electronic Weigh Bridge Car Weighing Bridge Digital Truck Scale



Model 7572  series portable weighbridges are designed to be easy to move from one jobsite to another. These steel-deck scales are ideal for operations such as logging, sand, gravel, construction, road building, and concrete/asphalt batching. The scale uses a bolted frame that is assembled on site. The basic portability option is a cost-effective solution to accommodate seasonal relocation of the scale. Zemic load cells combine proven performance with exceptional durability.





Specification of the Portable Vehicle Weighing Scales:

Model SCS-30 SCS-40 SCS-50 SCS-60 SCS-80 SCS-100 SCS-120 SCS-150
Capacity 30T 40T 50T 60T 80T 100T 120T 150T
Graduation Value 10kg 10kg 20kg 20kg 20kg 20kg 20kg 20kg
3.0×7M
3.0×9M
3.0×10M
3.0×12M
3.0×14M
3.0×15M
3.0×16M
3.0×18M
3.0×20M
3.2×12M
3.2×14M
3.2×16M
3.2×18M
3.2×20M
3.4×14M
3.4×16M
3.4×18M
3.4×21M



Features and Advantages:

  • Profile: 40CM
  • Bolted frame disassembles for relocation
  • Steel blasted to SSPC-SP6
  • Submerged arc welding in accordance with AWS D1.1
  • Sealed orthotropic rib chambers will not rust from inside out
  • Zemic load cells with self-diagnostic capabilities.
  • Cables with stainless steel sheath
  • 5-year guarantee / StrikeShield lightning protection
  • Epoxy-painted steel resists corrosion





                       Electronic Weigh Bridge Car Weighing Bridge Digital Truck Scale 0

Applications:

●Aggregate yards ●Timber mills ●Farmer’s markets
●Coal mines ●Ports of entry ●Grain plants
●Concrete plants ●Transfer stations ●Transportation ops



Service terms:

HS code

    84238990

Delivery Port

   SHANGHAI , NINGBO, QINGDAO

Trade terms EXW, FOB, CNF,CIF, DAP, DDU,DDP
Payment terms T/T or L/C, 30% advanced payment for production, balanced before shipment
Professional Installation We can send technician or require local agent installation
After sales service We can help the maintenance whenever you need

Portable Weighbridge Scales Manufacturing Process:

Electronic Weigh Bridge Car Weighing Bridge Digital Truck Scale 1

Options and Accessories :



                Choose from a large selection of options and accessories that let you tailor a truck scale to

             fit your application. Whether you are adding a manhole, side rails, wireless remote display,

unattended terminal, or other options, upgrading your scale is simple.



Why Choose Us?



· 1. Our company is well known and professional to supply the truck scales, floor scales, railway scales and other industrial scales.

· 2. We have shot blasting machine, shearing machine, bending machine, pre-arch machine, automatic welding machine, Baking paint room and 20 ton crane equipment.

· 3. We have as large as 25,000 square meter workshops equipped with professional manufacturing equipments, the pipeline production is highly efficient .

· 4. We have professional service and technical team help to customize your different needs.

             .5  Our warranty is 5 years for the complete set scale, whenever you have problem,                      we will get in touch with you timely.
