SWB405 Load Cell Module – 4400kg Capacity, Stainless Steel for Industrial Weighing Systems

SWB405 Load Cell Module – 4400kg Capacity, Stainless Steel for Industrial Weighing Systems

Product Details:
Place of Origin: CHINA
Brand Name: Mettler Toledo
Model Number: Weigh Module SWB405 4400kg 10m CS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Caron box
Delivery Time: 10-30days
Supply Ability: 2000 set per month
Contact Now
Detailed Product Description
Product: Mettler Toledo Load Cell Maximum Capacity: 10,000 Lb (4,400 Kg)
Material: Powder Coated Carbon Steel Metrology: OIML C3, NTEP III 5M
Load Cell: SLB415 Accuracy: Standard
Protection Rating: IP68, NEMA 6 Environment / Material: Normal / Carbon Steel
Hazardous Approval: ATEX, FM Criticality: Standard
Cable: 10 M
Highlight:

4400kg load cell module

,

stainless steel load cell

,

industrial weighing load cell

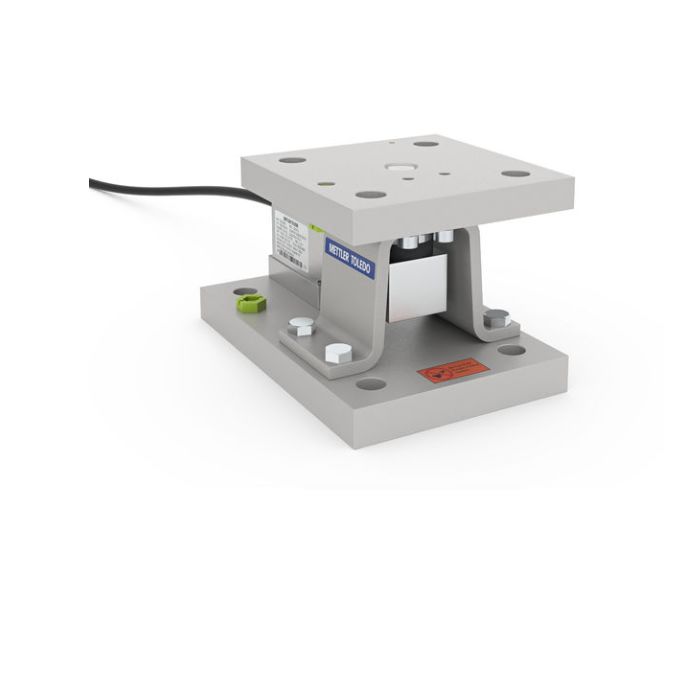

SWB405 Load Cell Module – 4400kg Capacity, Stainless Steel for Industrial Weighing Systems
Accurate, Reliable, Service-Friendly Weigh Module

SWB405 MultiMount Carbon Steel 4.4t/10k capacity load cell module designed for industrial weighing applications.

Product Overview

A compression weigh module designed so that its top plate and base plate are squeezed toward each other when weight is applied. Can be attached directly to the ground, piers or structural beams. Typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing.

Key Features
  • All Safety on Board: Includes anti-uplift protection, 360° checking and down-stop protection for tank weighing safety
  • Easy Integration: SafeLock™ feature built into SWB405 MultiMount™ weigh modules for easier installation
  • Reliable Weighing: Hermetically sealed SLB415 load cell with IP68 rating meets most industrial requirements
Technical Specifications
Attribute Value
Product Mettler Toledo Load Cell
Maximum Capacity 10,000 lb (4,400 kg)
Material Powder Coated Carbon Steel
Metrology OIML C3, NTEP III 5M
Load Cell SLB415
Accuracy Standard
Protection Rating IP68, NEMA 6
Environment/Material Normal/Carbon Steel
Hazardous Approval ATEX, FM
Cable 10 m
