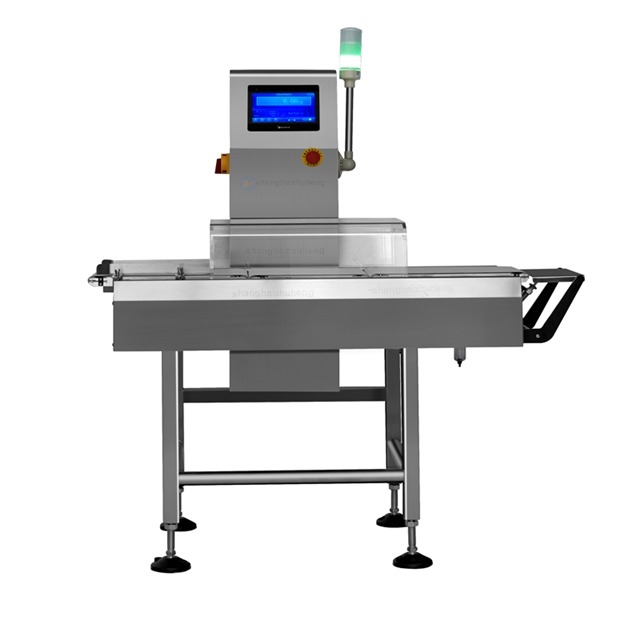

Name: Multi-Functional Checkweighers: Combining Weight, Metal Detection, and X-Ray Inspection
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Multi-Functional Checkweighers
Availability: InStock

Home Products Automatic Checkweigher

Multi-Functional Checkweighers: Combining Weight, Metal Detection, and X-Ray Inspection

Product Details:

Place of Origin:	CHINA
Model Number:	Multi-Functional Checkweighers

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Multi-Functional Checkweighers: Combining Weight, Metal Detection, And X-Ray Inspection	Capacity Range:	2g-30kg
Accuracy:	±0.1g To ±2g (speed Dependent)	Minimum Detectable Deviation:	0.5% Of Target Weight
Sensitivity (Ferrous):	0.3mm Ø	Sensitivity (Non-Ferrous):	0.5mm Ø
Sensitivity (Stainless Steel):	0.8mm Ø	Detection Resolution:	0.5mm For Dense Materials
Energy Output:	80-160kV (adjustable)	Density Difference Detection:	1% Contrast Sensitivity
Throughput:	150-800 Items/minute	Rejection Speed:	<50ms From Detection
False Reject Rate:	<0.2%	Conveyor Width:	200-600mm (adjustable)
Belt Types:	PU, Modular Plastic, Stainless Steel	IP Rating:	IP65 (standard), IP69K (washdown)
AI Defect Classification:	15+ Predefined Defect Categories	Auto-Calibration:	Daily Self-check With Calibration Weights
Predictive Maintenance:	Component Wear Monitoring	Industry Protocols:	OPC UA, Ethernet/IP, Modbus TCP
Data Output:	CSV, XML, SQL, PDF	Cloud Connectivity:	AWS IoT, Azure, Private Cloud Options
Food Safety Standards:	HACCP, IFS, BRCGS	Pharmaceutical Standards:	21 CFR Part 11, EU Annex 11
Electrical Safety:	CE, UL, CSA Certified
Highlight:	automatic checkweigher with metal detection , multi-functional checkweigher with x-ray inspection , industrial checkweigher with weight detection

Multi-Functional Checkweighers: Combining Weight, Metal Detection, and X-Ray Inspection

In a competitive and highly regulated manufacturing environment, ensuring product quality and safety is paramount. Multi-functional checkweighers integrate multiple inspection technologies into a single, compact unit, combining high-speed weighing with metal detection and X-ray inspection for comprehensive quality control.

Key Features

Combined weight verification, metal detection, and X-ray inspection in one system
High-precision weighing with accuracy from ±0.1g to ±2g
Advanced contaminant detection including metals, glass, stone, and bone
AI-powered defect classification with 15+ predefined categories
Cloud connectivity options for data analysis and reporting
Compliant with food safety and pharmaceutical standards

How Multi-Functional Checkweighers Work

Products move along a conveyor belt through sequential inspection stages:

Checkweighing: Measures product weight against target range
Metal Detection: Identifies ferrous, non-ferrous, and stainless steel contaminants
X-Ray Inspection: Detects dense contaminants through grayscale image analysis

Industry Applications

Food and Beverage: Detecting contaminants in packaged goods and verifying fill weights
Pharmaceuticals: Ensuring accurate dosing and detecting foreign objects
Cosmetics: Checking fill levels and product purity

Technical Specifications

Parameter	Specifications
Capacity Range	2g-30kg
Accuracy	±0.1g to ±2g (speed dependent)
Minimum Detectable Deviation	0.5% of target weight
Sensitivity (Ferrous)	0.3mm Ø
Sensitivity (Non-Ferrous)	0.5mm Ø
Sensitivity (Stainless Steel)	0.8mm Ø
Detection Resolution	0.5mm for dense materials
Energy Output	80-160kV (adjustable)
Density Difference Detection	1% contrast sensitivity

By consolidating multiple inspection points into one machine, manufacturers can streamline processes, reduce costs, save floor space, and ensure consistently safe, high-quality products.
