Name: Advanced C33 PlusLine Checkweigher for Compliance-Driven Industries
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: C33 PlusLine Checkweigher
Availability: InStock

Home Products Automatic Checkweigher

Advanced C33 PlusLine Checkweigher for Compliance-Driven Industries

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	C33 PlusLine Checkweigher

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	C33 PlusLine Checkweigher	Industry:	Chemical Food & Beverage Metal, Plastic And Electronics Components
Weighing Accuracy:	From ±0.05 G	Max Product Weight:	7.5 Kg
Max Line Speed:	180 M/min	IP Rating:	IP54, IP65
Connectivity:	Ethernet TCP/IP Fieldbus OPC UA	Inspection Solution:	Checkweighing
Weighing Technology:	Strain Gauge, EMFR	Packaging Type:	Bags, Bottle, Bundles, Cardboard, Cartons, Cases, Composite Cans, Flow Packs, Trays, VFFS
Product Characteristic:	Deep Frozen, Dry, Medium-Large Packages, Open Round Container, Small Individual Wrapped Products, Small-Medium Packages Wet	Industry Segment:	Automotive, Bakery And Confectionery Beer, Wine And Other Alcoholic Beverages Cosmetics Dairy
Highlight:	C33 PlusLine checkweigher for compliance , Mettler Toledo checkweigher , industrial checkweigher for regulated industries

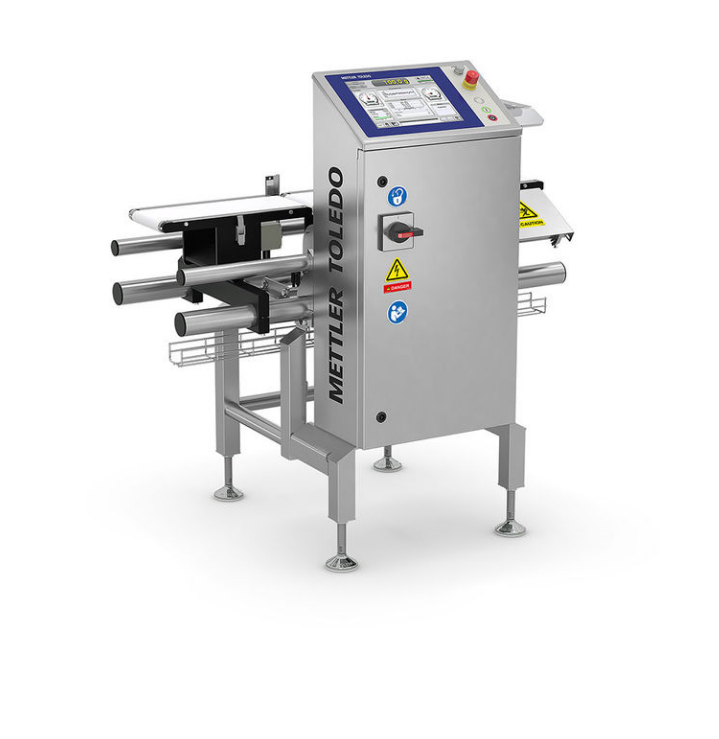

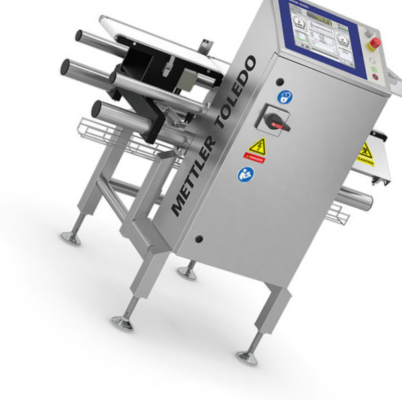

Advanced C33 PlusLine Checkweigher for Compliance-Driven Industries

The C33 PlusLine is a high-performance checkweigher engineered for maximum accuracy and throughput in demanding production environments. With its superior weighing technology, the C33 ensures precise weight verification and sorting at speeds of up to 400 packs per minute.

Versatile, Efficient Checkweighing

Flexible mid-level checkweigher for standard weighing applications featuring advanced FlashCell™ EMFR technology. Achieve high accuracy at throughputs up to 350 ppm for food and non-food applications in dry, wet and harsh environments.

Key Features

Efficiency Driven by Performance: Standardized, configurable options and open customization possibilities offer versatility
Advanced Integration Options: Available as space-saving combination system with metal detection or vision inspection technology
Performance in All Environments: Modular design with IP54, IP65 or IP69 rating delivers reliability in dry, wet or harsh conditions

Technical Specifications

Attribute	Value
Model No	2400330000
IP Rating	IP54, IP65
Compatible Software	ProdX
Connectivity	Ethernet TCP/IP, Fieldbus, OPC UA
Max Product Width	400 mm
Max Weighing Zones	5
Weighing Technology	EMFR, Strain Gauge
HMI	7" Touchscreen, 12" Touchscreen

Applications

Chemical, Food & Beverage, Metal, Plastic and Electronics Components industries
Packaging Types: Bags, Bottles, Bundles, Cardboard, Cartons, Cases, Composite Cans, Flow Packs, Trays, VFFS
Product Characteristics: Deep Frozen, Dry, Medium-Large Packages, Open Round Containers, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry Segments: Automotive, Bakery and Confectionery, Beer/Wine/Alcoholic Beverages, Cosmetics, Dairy
