Name: Hygienic C33 PlusLine WD Checkweigher for Demanding Washdown Applications
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: C33 PlusLine WD Checkweigher
Availability: InStock

Home Products Automatic Checkweigher

Hygienic C33 PlusLine WD Checkweigher for Demanding Washdown Applications

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	C33 PlusLine WD Checkweigher

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	C33 PlusLine WD Checkweigher	Inspection Application:	Completeness Check Weight Control
Industry:	Chemical Food & Beverage	Weighing Accuracy:	From ±0.2 G
Max Product Weight:	7 Kg	Max Line Speed:	90 M/min
Max Throughput:	250 Ppm	Connectivity:	Ethernet TCP/IP Fieldbus OPC UA
HMI:	7" Touchscreen, 12" Touchscreen	Product Characteristic:	Medium-Large Packages, Open, Round Container, Small-Medium Packages, Wet
Industry Segment:	Agriculture And Bulk Foods, Beer, Wine And Other Alcoholic Beverages, Dairy, Meat & Poultry & Seafood, Pet Food And Animal Feed, Ready Meals, Water And Other Non-Alcoholic Beverages	Packaging Type:	Glass, Metal Cans, Plastic, Trays, Unpackaged
Highlight:	Hygienic C33 PlusLine checkweigher , Washdown checkweigher for demanding applications , Mettler Toledo checkweigher

Hygienic C33 PlusLine WD Checkweigher for Demanding Washdown Applications

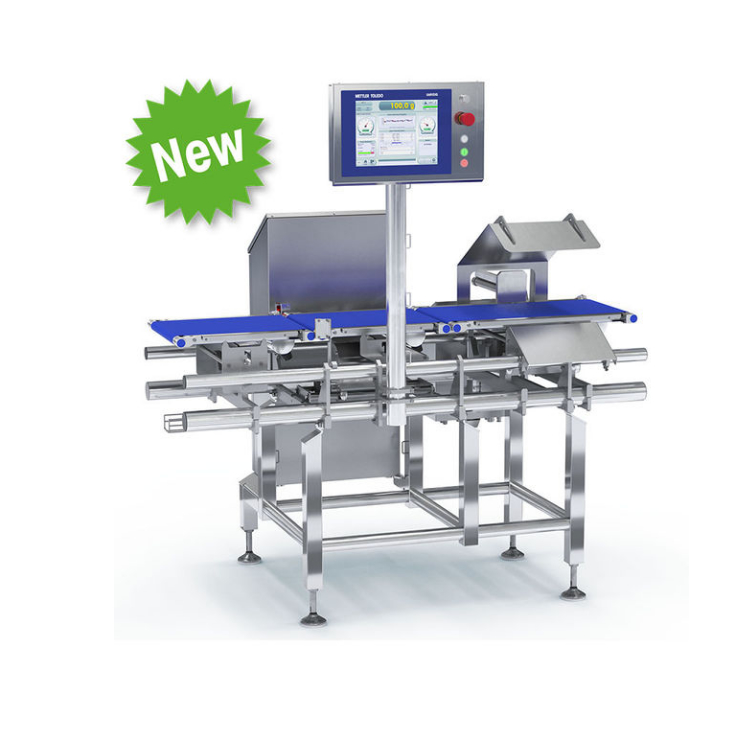

The Mettler Toledo C33 PlusLine WD Checkweigher is a high-performance, robust weighing system specifically engineered for the most demanding washdown environments. Unlike standard checkweighers, the "WD" (Washdown) model is built with a resilient, hygienic design and advanced features to ensure reliable operation in wet, harsh production lines.

Key Features

Robust Performance: Combines reliable weighing accuracy with rugged machine design for harsh production environments. The system, including the HMI, is IP69 rated and proven to be resistant to most caustic detergents and high-pressure cleaning.
Resilient System Design: Suitable for the harshest of cleaning regimes, with an IP69 rating and proven resistance to most caustic detergents, disinfectants and high-pressure cleaning.
High Precision in Harsh Environments: High weighing precision with MID certification helps to comply with weighing regulations and reduces costly product waste.
Easy to Clean, Hygienic Design: Only four feet on the floor provides easy cleaning access while sloped surfaces prevent liquid retention and discourage bacterial contamination.

Technical Specifications

Attribute	Value
Product	C33 PlusLine WD Checkweigher
Product Flow	Conveyor
Inspection Application	Completeness Check Weight Control
Industry	Chemical Food & Beverage
Weighing Accuracy	from ±0.2 g
Max Product Weight	7 kg
Max Line Speed	90 m/min
Max Throughput	250 ppm
IP Rating	IP69
Compatible Software	ProdX
Connectivity	Ethernet TCP/IP Fieldbus OPC UA
Inspection Solution	Checkweighing
Max Product Width	400 mm
Max Weighing Zones	5
Weighing Technology	EMFR
HMI	7" Touchscreen, 12" Touchscreen

Product Characteristics

Medium-Large Packages
Open, Round Container
Small-Medium Packages
Wet

Industry Applications

Agriculture and Bulk Foods
Beer, Wine and Other Alcoholic Beverages
Dairy, Meat & Poultry & Seafood
Pet Food and Animal Feed
Ready Meals
Water and other Non-Alcoholic Beverages

Compatible Packaging Types

Glass
Metal Cans
Plastic
Trays
Unpackaged
