C35 AdvancedLine Checkweigher for Ultimate Production Efficiency

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	C35 AdvancedLine Checkweigher

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	C35 AdvancedLine Checkweigher	Inspection Application:	Completeness Check Weight Control
Industry:	Chemical, Food & Beverage Metal, Plastic And Electronics Components	Weighing Accuracy:	From ±0.01 G
Max Product Weight:	10 Kg	Max Line Speed:	180 M/min
Max Throughput:	800 Ppm	IP Rating:	IP54, IP65
Connectivity:	Ethernet TCP/IP Fieldbus OPC UA	Product Characteristic:	Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry Segment:	Automotive, Bakery And Confectionery, Beer, Wine And Other Alcoholic Beverages, Cosmetics, Dairy	Packaging Type:	Bags, Bottle, Bundles, Cardboard, Cartons, Cases, Composite Cans, Flow Packs, Metal Cans, Trays, VFFS
Highlight:	C35 Checkweigher for production efficiency , Mettler Toledo Checkweigher , AdvancedLine Checkweigher load cell

C35 AdvancedLine Checkweigher for Ultimate Production Efficiency

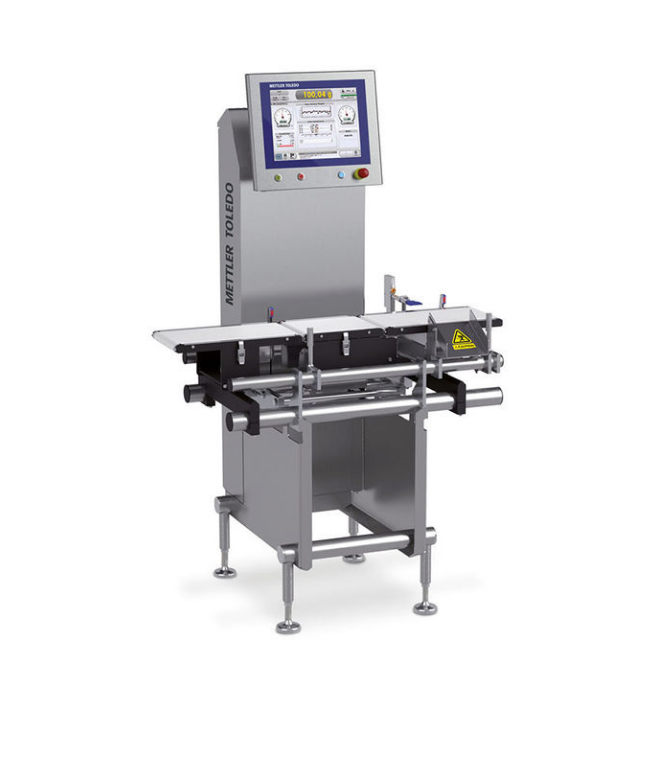

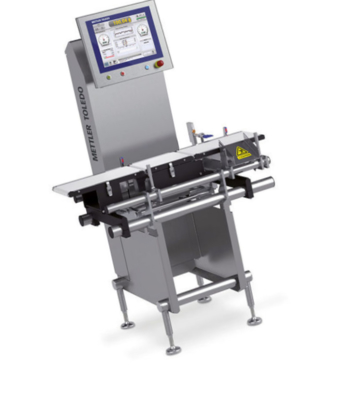

The Mettler Toledo C35 AdvancedLine Checkweigher is a top-of-the-line system designed for manufacturers who require the highest levels of performance and flexibility. It is engineered to deliver unmatched speed and precision for the most demanding production environments.

High Performance Checkweighing

Advanced FlashCell™ EMFR technology delivers maximum accuracy at throughputs up to 800ppm. The modular design offers customization to effectively handle any package type.

Key Features

Performance Excellence: Delivers flexibility to support all product sizes and weighing challenges with maximum precision at fast throughputs
Product Handling Excellence: Achieve maximum process stability and equipment efficiency through transition, transport, stability and sorting options for any packaging format
Software and Control Excellence: Exceptional process optimization with a wide range of standard and customizable, sophisticated software enhancements and control options

Technical Specifications

Attribute	Value
Model No	2400350000
IP Rating	IP65, IP54
Compatible Software	ProdX
Connectivity	Ethernet TCP/IP Fieldbus OPC UA
Inspection Solution	Checkweighing
Max Product Width	400 mm
Max Weighing Zones	7
Weighing Technology	EMFR
HMI	15" Touchscreen

Applications

Ideal for industries including: Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Automotive, Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics, and Dairy.

Package Compatibility

Handles various packaging types including: Bags, Bottles, Bundles, Cardboard, Cartons, Cases, Composite Cans, Flow Packs, Metal Cans, Trays, and VFFS.
