The CV Combination Complete Solution for Product Packaging Quality

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	CV Combination

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	CV Combination	Packaging Type:	Bags, Bottle, Bundles, Cartons, Cases, Composite Cans, Flow Packs
Inspection Application:	Code Inspection, Label Inspection, Weight Control	Product Characteristic:	Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry:	Chemical, Food & Beverage, Metal, Plastic And Electronics Components, Pharma & Biotech	Weighing Accuracy:	From ±0.01 G
Industry Segment:	Automotive, Bakery And Confectionery, Beer, Wine And Other Alcoholic Beverages, Cosmetics	Max Line Speed:	180 M/min
Max Throughput:	500 Ppm	Reading Devices:	Smart Camera
Max Camera Field Of View:	110 X 110 Mm	Label Quality Inspection:	Graphical ID, Label Placement, Label Skew, Label Wrinkles
Highlight:	Mettler Toledo load cell , packaging quality load cell , product quality measurement load cell

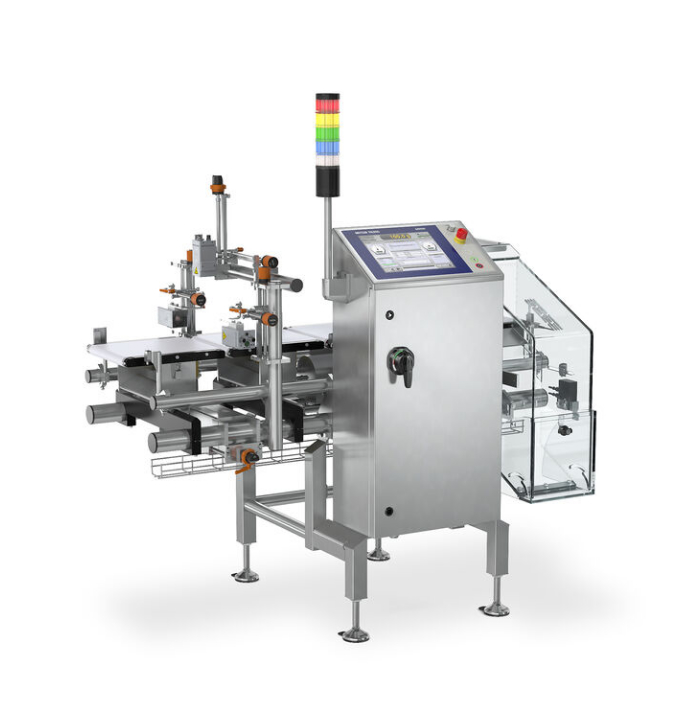

CV Combination Complete Solution for Product Packaging Quality

Product Overview

The CV Combination system is an advanced, two-in-one solution that integrates a high-precision checkweigher with a powerful vision inspection system. Designed for industries like food, pharmaceuticals, and consumer packaged goods, this system provides comprehensive quality control, ensuring products meet weight specifications while verifying correct labeling, packaging, and visual appearance.

Key Features

Combined weight control and vision inspection in one compact system
Detects under- and overfilled products to comply with regulations
Identifies label defects to prevent costly recalls
Space-saving design with shared conveyor components
Reduced total cost of ownership with unified service and training

Technical Specifications

Attribute	Value
Product	CV Combination
Packaging Type	Bags, Bottle, Bundles, Cartons, Cases, Composite Cans, Flow Packs
Inspection Application	Code Inspection, Label Inspection, Weight Control
Max Line Speed	180 m/min
Max Throughput	500 ppm
Weighing Accuracy	from ±0.01 g
Max Product Weight	10 Kg
Max Weighing Zones	5
HMI Options	12" Touchscreen, 15" Touchscreen

Detailed Specifications

Material No: 2499000100

IP Rating: IP54, IP65

Compatible Software: ProdX

Connectivity: Ethernet TCP/IP, Fieldbus, OPC UA

Weighing Technology: EMFR, Strain Gauge

Label Data Inspection: 1D/2D Barcode Alpha Numeric

Number of Reading Devices: 8

Camera Inspection Area: 360° Bottom Side Top
