The Ultimate Inspection Hub for CMV Combination Safety

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	CMV Combination

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	CMV Combination	Packaging Type:	Bags, Bottle, Bundles, Cartons, Cases, Composite Cans, Flow Packs
Inspection Application:	Code Inspection, Label Inspection, Weight Control	Product Characteristic:	Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry:	Chemical, Food & Beverage, Metal, Plastic And Electronics Components, Pharma & Biotech	Weighing Accuracy:	From ±0.01 G
Industry Segment:	Automotive, Bakery And Confectionery, Beer, Wine And Other Alcoholic Beverages, Cosmetics	Max Line Speed:	180 M/min
Max Throughput:	500 Ppm	Material No.:	2499000200
Reading Devices:	Smart Camera	Max Camera Field Of View:	110 X 110 Mm
Highlight:	CMV Combination inspection hub , Mettler Toledo load cell , safety inspection equipment

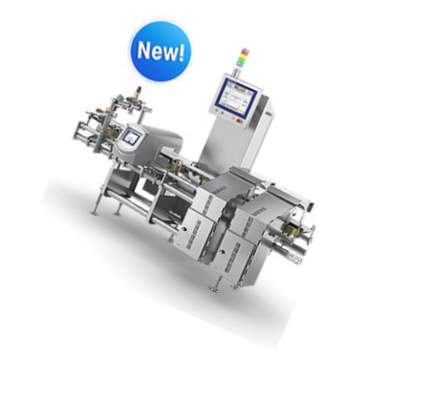

The Ultimate Inspection Hub for CMV Combination Safety

Product Overview

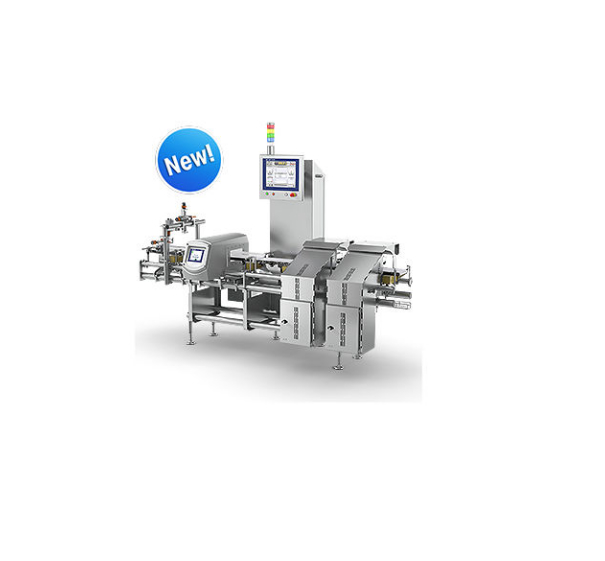

The CMV Combination system is an advanced, all-in-one solution that integrates three critical inspection technologies into a single, compact unit: a high-precision checkweigher, a sensitive metal detector, and a powerful vision inspection system. This powerful combination serves as a comprehensive quality control point, ensuring products meet weight specifications while being free from metal contaminants and having correct, intact packaging.

Key Features

3-in-1 Inspection Solution: Combines metal detection, weight control, and label inspection in one integrated device
Configuration Flexibility: Customize with various metal detectors, checkweighers, and label inspection systems
Space-Saving Design: Maximizes production space with only four feet on the ground
Reduced Total Cost of Ownership: Single provider for configuration support, training and service

Technical Specifications

Material No. 2499000200

IP Rating IP54, IP65

Compatible Software ProdX

Connectivity Ethernet TCP/IP, Fieldbus, OPC UA

Inspection Solution Checkweighing-Metal Detection-Vision

Max Product Weight 10 Kg

Max Weighing Zones 7

Weighing Technology EMFR, Strain Gauge

HMI 12" Touchscreen, 15" Touchscreen

Max Camera Field of View 110 x 110 mm

Label Quality Inspection Graphical ID, Label ID, Label Placement, Label Skew

Label Data Inspection 1D/2D Barcode Alpha Numeric

Number of Reading Devices 8

Product Attributes

Attribute	Value
Product	CMV Combination
Packaging Type	Bags, Bottle, Bundles, Cartons, Cases, Composite Cans, Flow Packs
Inspection Application	Code Inspection, Label Inspection, Weight Control
Product Characteristic	Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry	Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Pharma & Biotech
Weighing Accuracy	from ±0.01 g
Industry Segment	Automotive, Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics
Max Line Speed	180 m/min
Max Throughput	500 ppm
Reading Devices	Smart Camera
