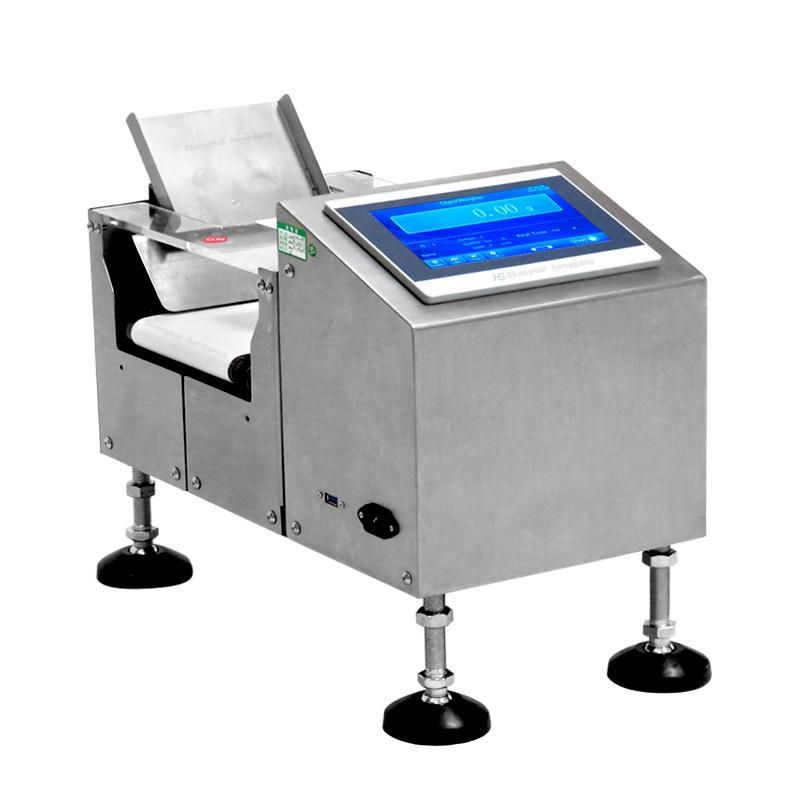

Name: Next-Generation Automated Checkweighers with Machine Vision Integration
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Next-Generation Automated Checkweighers with Machine Vision Integration
Availability: InStock

Home Products Automatic Checkweigher

Next-Generation Automated Checkweighers with Machine Vision Integration

Product Details:

Place of Origin:	CHINA
Model Number:	Next-Generation Automated Checkweighers with Machine Vision Integration

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Next-Generation Automated Checkweighers With Machine Vision Integration	Minimum Weight:	0.1g – 1g (depending On Model)
Maximum Weight:	5kg – 50kg (adjustable Based On Application)	Standard Deviation:	±0.1g To ±1g (depends On Load Cell & Speed)
Legal-for-Trade (Optional):	OIML R51, NTEP, EC 60001	Max. Products/Min:	100 – 600 (depends On Product Size & Conveyor Speed)
Camera Resolution:	5MP – 12MP (high-speed Industrial Cameras)	Inspection Capabilities:	Barcode/QR Reading, Shape/size Defects, Color Detection, Label Verification
Lighting System:	LED Strobe Lighting (adjustable Wavelengths)	Software Compatibility:	Deep Learning (AI-based Defect Detection), OpenCV, Halcon, Cognex VisionPro
Belt Width:	150mm – 600mm (customizable)	Belt Material:	PU, PVC, Or Stainless Steel (food-grade Options Available)
Speed Adjustment:	Variable (0.1 – 1.5 M/s)	Type:	Pneumatic Pusher, Diverter Arm, Or Drop Flap
Response Time:	<50ms	Interface:	Ethernet, RS-232, USB, Wi-Fi (optional)
PLC Integration:	Siemens, Mitsubishi, Allen-Bradley	Software:	HMI Touchscreen With Cloud Data Logging (SQL, CSV Export)
Voltage:	110V/220V AC, 50/60Hz	Power Consumption:	300W – 1.5kW (depending On Configuration)
Operating Temperature:	0°C – 45°C	Protection Rating:	IP54 (standard), IP65/IP66 (washdown Models For Food/pharma)
Industry Standards:	FDA, CE, RoHS, GMP, ISO 9001	Standard Model:	1200mm × 800mm × 1000mm (custom Lengths Available)
Multi-Lane Sorting:	Up To 4 Lanes For Simultaneous Sorting	AI-Based Weight Prediction:	Dynamic Adjustment For Variable Product Weights
Remote Monitoring:	IoT-enabled With Real-time Dashboard (AWS/Azure Compatible)
Highlight:	automated checkweighers with machine vision , Mettler Toledo load cell checkweighers , next-generation automated weighing systems

Next-Generation Automated Checkweighers with Machine Vision Integration

System Overview

Modern automated checkweighers combine high-precision load cells with advanced machine vision to deliver unparalleled quality control. These hybrid systems provide:

Simultaneous weight + visual inspection (100% product verification)
AI-powered defect detection (0.01mm resolution)
Real-time process optimization (closed-loop feedback)
Multi-parameter quality gates (weight, dimensions, labels, defects)

Smart Inspection Features

3D Profilometry:
- Laser triangulation (10μm Z-axis resolution)
- Volume calculation for density verification
Surface Defect Detection:
- Scratch/contamination identification (0.05mm² sensitivity)
- Spectral analysis for material verification
Label Inspection:
- OCR/OCV at 300dpi resolution
- Barcode/QR code validation (ISO/IEC 15415 compliant)

Key Specifications

Attribute	Value
Minimum Weight	0.1g - 1g (depending on model)
Maximum Weight	5kg - 50kg (adjustable based on application)
Standard Deviation	±0.1g to ±1g (depends on load cell & speed)
Legal-for-Trade (Optional)	OIML R51, NTEP, EC 60001
Max. Products/Min	100 - 600 (depends on product size & conveyor speed)
Camera Resolution	5MP - 12MP (high-speed industrial cameras)
Inspection Capabilities	Barcode/QR reading, shape/size defects, color detection, label verification
Lighting System	LED strobe lighting (adjustable wavelengths)
Software Compatibility	Deep learning (AI-based defect detection), OpenCV, Halcon, Cognex VisionPro
